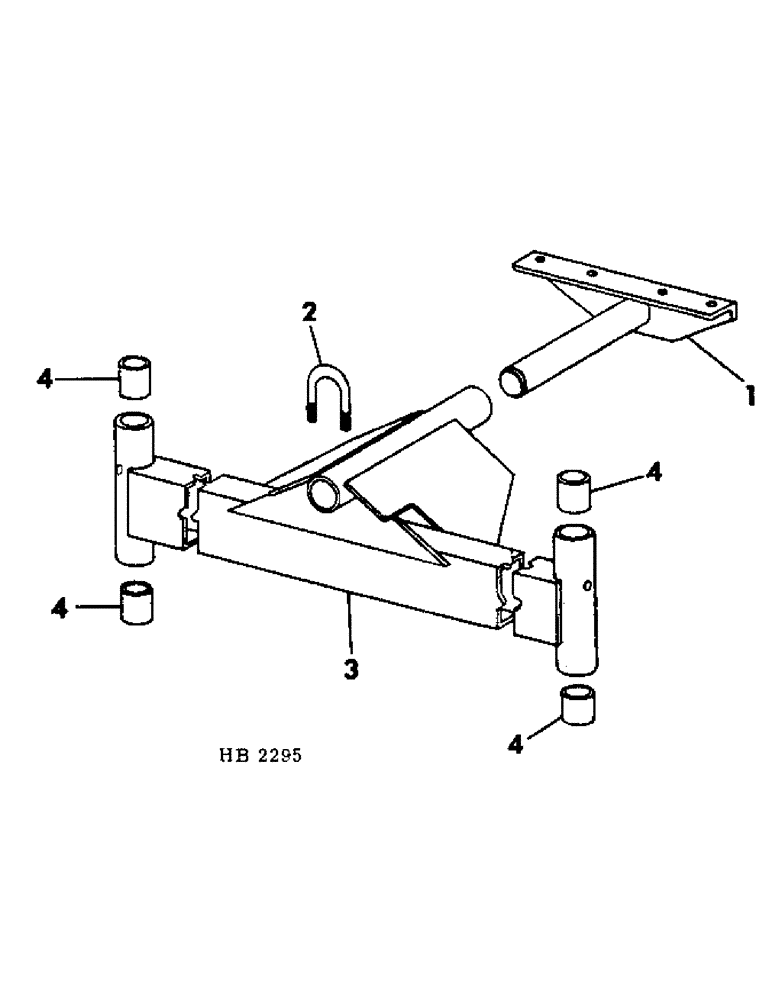

Запчасти Case IH 5000 (14-05) - SUSPENSION, BOLSTER Suspension

1

827712C1

PIVOT

ASSY, caster wheel beam

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

22188R1

WASHER

2.281 x 3.000 x .067

2шт.

2

827716C1

BOLT,1/2" - 13 x 2.78" W x 3.70" L

U-BOLT, pivot rod

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

823191C91

BEAM

ASSY, caster wheel, Includes 4-828891C1 bushing & 1-828804C1 warning product graphic

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str drive lub

2шт.

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-90 thd forming lub

1шт.

4

828891C1

BUSHING

pivot tube

4шт.
