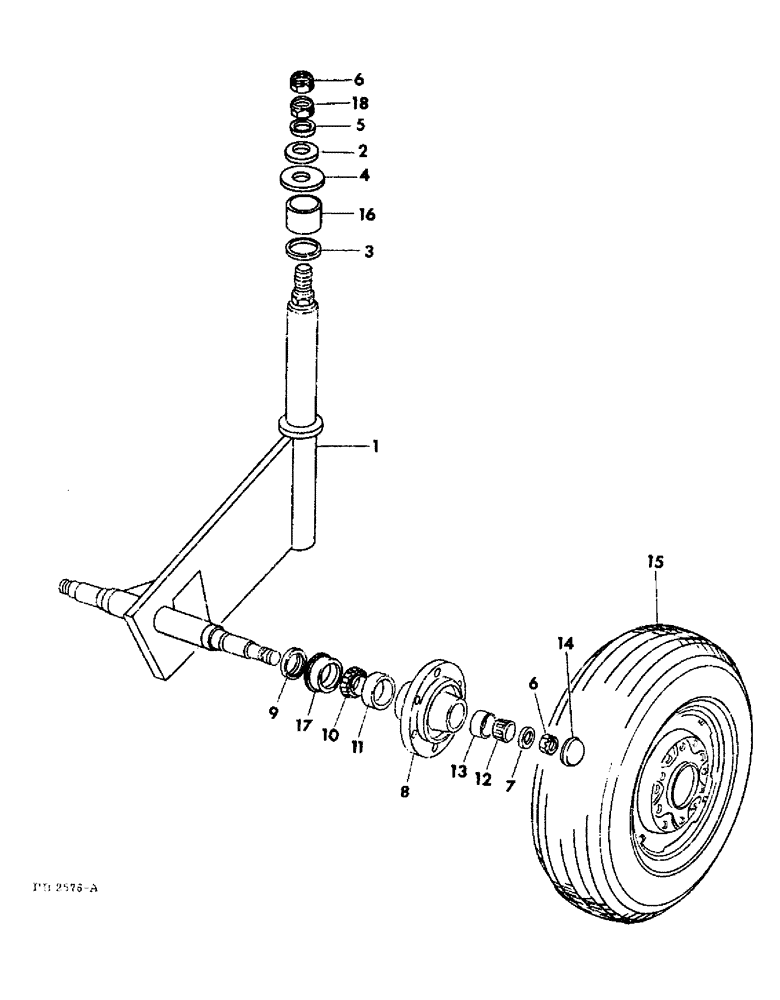

Запчасти Case IH 5000 (14-03) - SUSPENSION, DUAL WHEEL AXLES Suspension

1

831484C92

AXLE

ASSY, dual wheel, Consists of

2шт.

NSS

NOT SOLD SEPARAT

AXLE

1шт.

829962C1

SPRING WASHER

WASHER

1шт.

829963C1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

3шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

3шт.

467750R1

WASHER

2шт.

23245R1

WASHER

3шт.

426099

NUT,3/4"-16, G5

1шт.

2

829962C1

SPRING WASHER

WASHER, spring

2шт.

3

488175R1

WASHER

2.031 x 3.000 x .0598

2шт.

4

829963C1

WASHER

.781 x 2.750 x .164

2шт.

5

23245R1

WASHER

.781 x 1.750 x .164 (Or as required)

4шт.

6

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

6шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

6шт.

7

467750R1

WASHER

.781 x 1.500 x .105

4шт.

8

810087C1

HUB

wheel

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

24шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

4шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, bearing inner

4шт.

11

651817R1

BEARING CUP

CUP, bearing inner

4шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, bearing outer

4шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

13

651814R1

BEARING CUP

CUP, bearing outer

4шт.

14

602959R1

PLUG

CAP, hub

4шт.

15

WHEEL, dual axle caster, For service parts refer to wheels section no. 15

4шт.

16

831163C1

SPACER

dual axle caster wheel height adjuster

2шт.

17

472222R1

SLEEVE

oil sear wear

4шт.

18

426099

NUT,3/4"-16, G5

3/4-16 znd hex

2шт.
