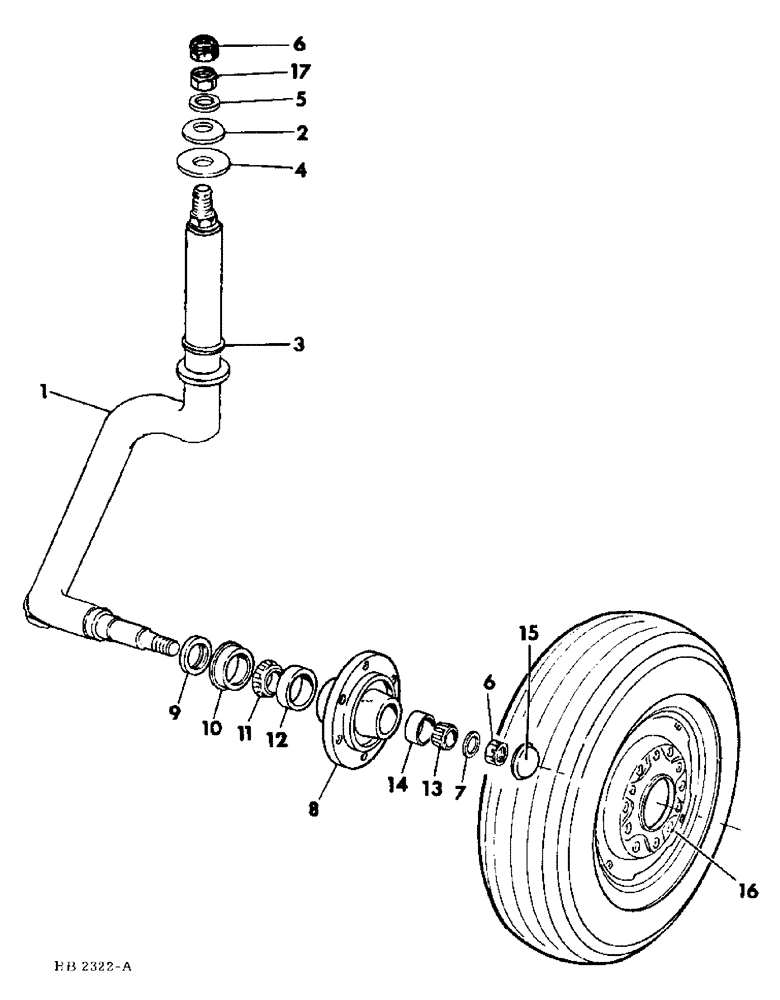

Запчасти Case IH 5000 (14-01) - SUSPENSION, CASTER WHEEL AXLES Suspension

1

827674C92

AXLE

ASSY, caster wheel LH, Consists of

1шт.

NSS

NOT SOLD SEPARAT

AXLE

1шт.

829962C1

SPRING WASHER

WASHER

1шт.

829963C1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

467750R1

WASHER

1шт.

426099

NUT,3/4"-16, G5

1шт.

23245R1

WASHER

3шт.

1

827675C92

AXLE

ASSY, caster wheel RH, Consists of

1шт.

NSS

NOT SOLD SEPARAT

AXLE

1шт.

829962C1

SPRING WASHER

WASHER

1шт.

829963C1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

467750R1

WASHER

1шт.

426099

NUT,3/4"-16, G5

1шт.

23245R1

WASHER

3шт.

2

829962C1

SPRING WASHER

WASHER, spring

2шт.

3

488175R1

WASHER

2.031 x 3.000 x .0598

2шт.

4

829963C1

WASHER

.781 x 2.750 x .164

2шт.

5

23245R1

WASHER

.781 x 1.750 x .164 (Or as required)

4шт.

6

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

7

467750R1

WASHER

.781 x 1.500 x .105

2шт.

8

810087C1

HUB

wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

10

472222R1

SLEEVE

oil seal wear

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, bearing inner

2шт.

12

651817R1

BEARING CUP

CUP, bearing inner

2шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, bearing outer

2шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

14

651814R1

BEARING CUP

CUP, bearing outer

2шт.

15

602959R1

PLUG

CAP, hub

2шт.

16

WHEEL, axle caster, For service parts refer to wheels section no. 15

2шт.

17

426099

NUT,3/4"-16, G5

3/4-16 znd hex

2шт.
