Запчасти Case IH 5000 (12-47) - POWER, FUEL TANK AND SUPPORTS Power

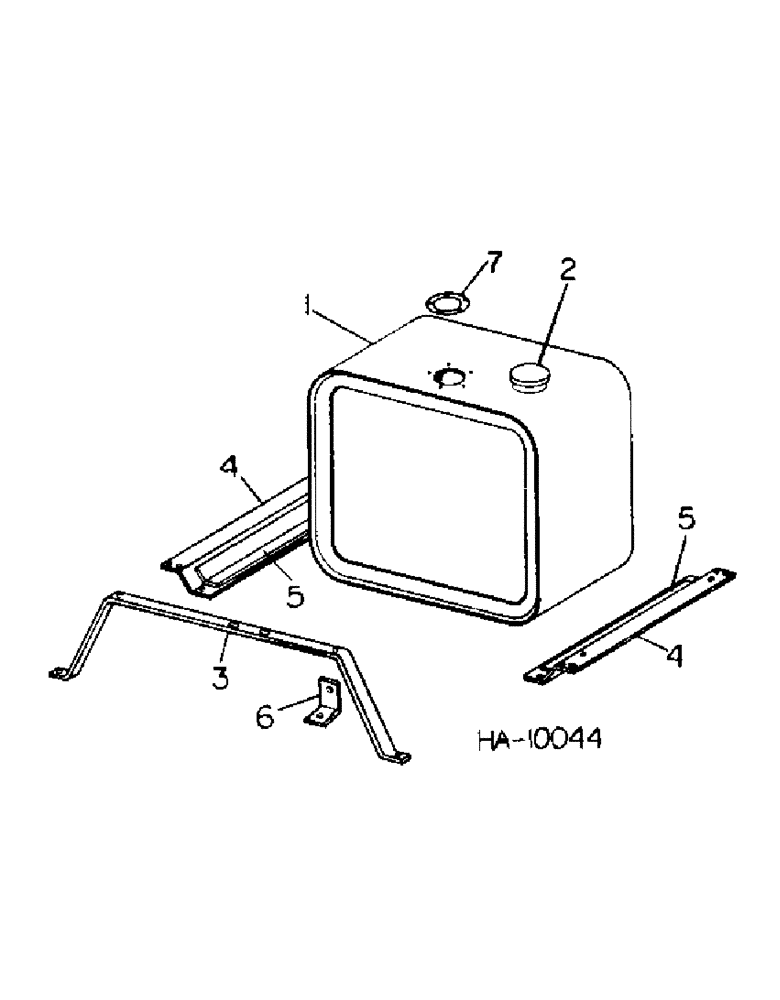

Схема запчастей Case IH 5000 - (12-47) - POWER, FUEL TANK AND SUPPORTS Power

Артикул

Название

Примечание

Количество

1

828306C92

TANK

ASSY, fuel w/cap, Includes ref nos 2, 7, 444577 plug and 5-454065 screw

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4 NPT auto sq hd pipe

1шт.

2

361910R91

PLUG

CAP, fuel tank

1шт.

3

828291C1

SUPPORT

fuel tank front

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

4

830028C92

SUPPORT

ASSY, fuel tank, Includes 1-827722C1 pad

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

827722C1

PAD

fuel tank

2шт.

6

828903C2

ANGLE

fuel tank stop

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

823541C1

GASKET

fuel gauge

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

no. 10NF x 3/4 znd h/hd mach

5шт.

Выбрано товаров: 22
