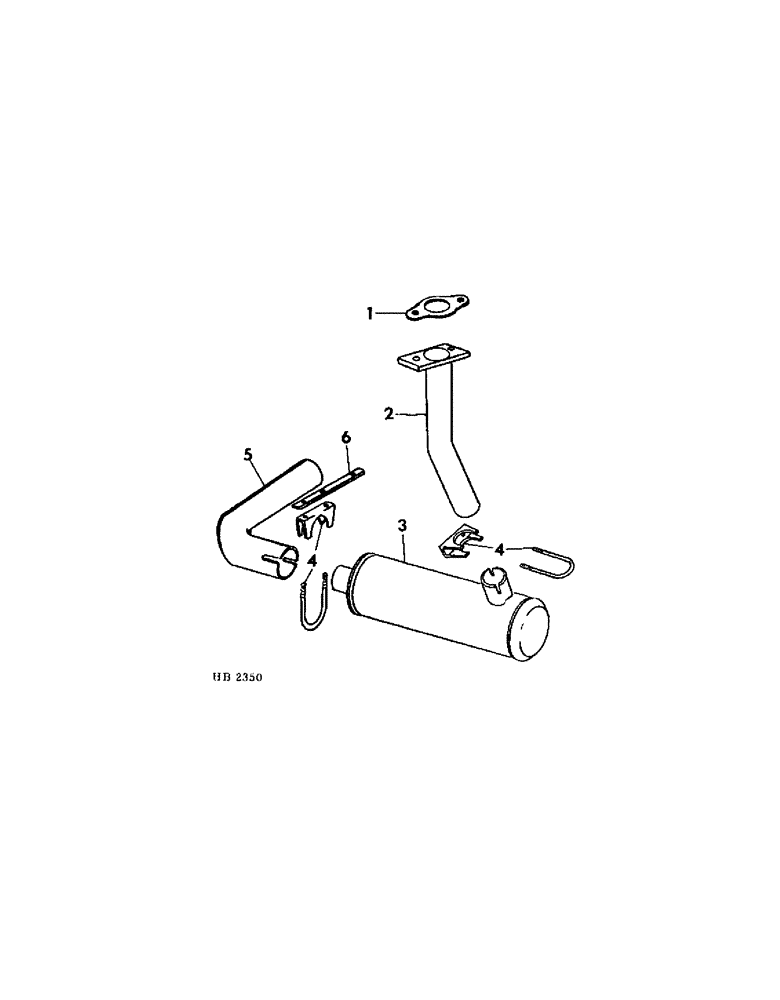

Запчасти Case IH 5000 (12-46) - POWER, EXHAUST MUFFLER & CONNECTIONS D-239 DIESEL ENGINE, 5000 & 5500 W/DOWNWARD DISCHARGE Power

1

598638R1

GASKET, exhaust pipe flange opt w/3057485R1 gasket

1шт.

1

3057485R1

SEAL

exhaust pipe flange opt w/598638R1 gasket

1шт.

2

828901C1

PIPE

ASSY, exhaust

1шт.

280136

NUT,3/8"-16, G8

Exhaust stud 3/8"-16, G8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619854R1

WASHER, .406 x 1.000 x .054

2шт.

3

829176C91

MUFFLER

exhaust, Includes 1-444578 plug

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4 npt sq hd brass

1шт.

4

170572R91

CLAMP

ASSY, exhaust & tail

2шт.

5

830000C1

PIPE

tail

1шт.

6

830042C1

BAR, tail pipe clamp

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
