(12-46[A]) - POWER, EXHAUST MUFFLER & CONNECTIONS D-239 DIESEL ENGINE, 5000 & 5500 W/UPWARD DISCHARGE

Запчасти Case IH 5000 (12-46[A]) - POWER, EXHAUST MUFFLER & CONNECTIONS D-239 DIESEL ENGINE, 5000 & 5500 W/UPWARD DISCHARGE Power

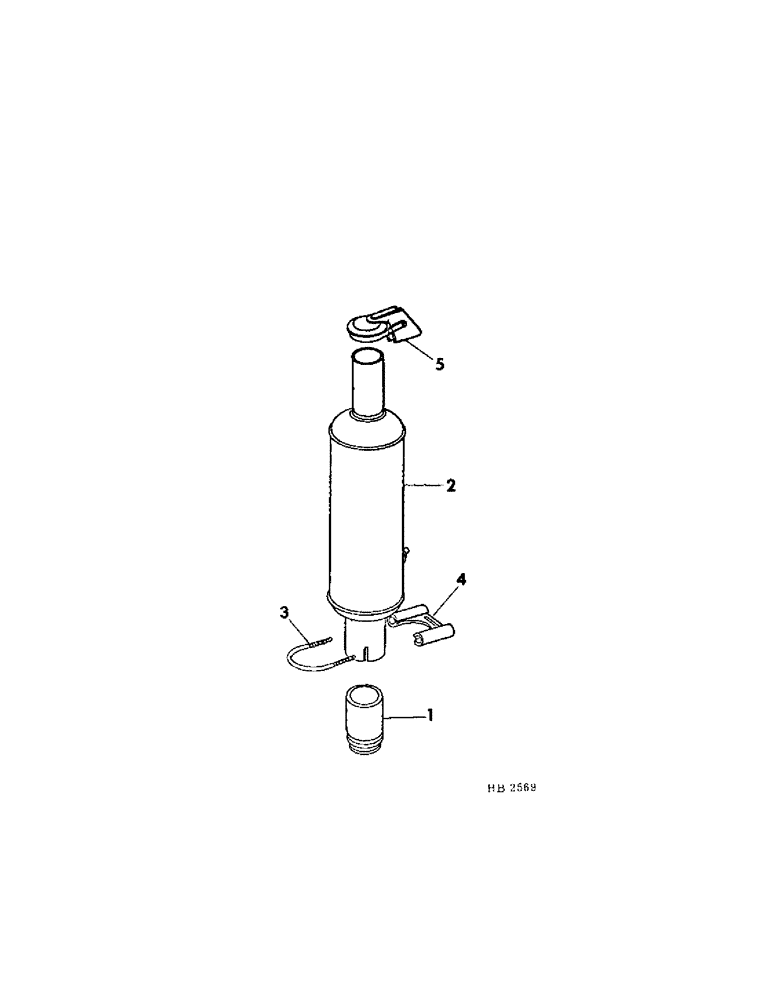

Схема запчастей Case IH 5000 - (12-46[A]) - POWER, EXHAUST MUFFLER & CONNECTIONS D-239 DIESEL ENGINE, 5000 & 5500 W/UPWARD DISCHARGE Power
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

534207C1

BRACKET

PIPE, exhaust

1шт.

2

831315C91

MUFFLER

exhaust, Includes 1-444584 plug

1шт.

444584

PLUG

3/8 NPT sq hd brass

1шт.

3

537724R1

U-BOLT

muffler clamp

1шт.

120376

NUT,5/16"-18, G5

2шт.

4

537723R1

SADDLE

muffler clamp

1шт.

5

999574R91

CYLINDER END CAP

CAP, weather

1шт.
