(12-45[A]) - POWER, EXHAUST MUFFLER AND CONNECTIONS, HB-225 GAS ENGINE FOR USE ON 5000 AND 5500 WINDROWERS

Запчасти Case IH 5000 (12-45[A]) - POWER, EXHAUST MUFFLER AND CONNECTIONS, HB-225 GAS ENGINE FOR USE ON 5000 AND 5500 WINDROWERS Power

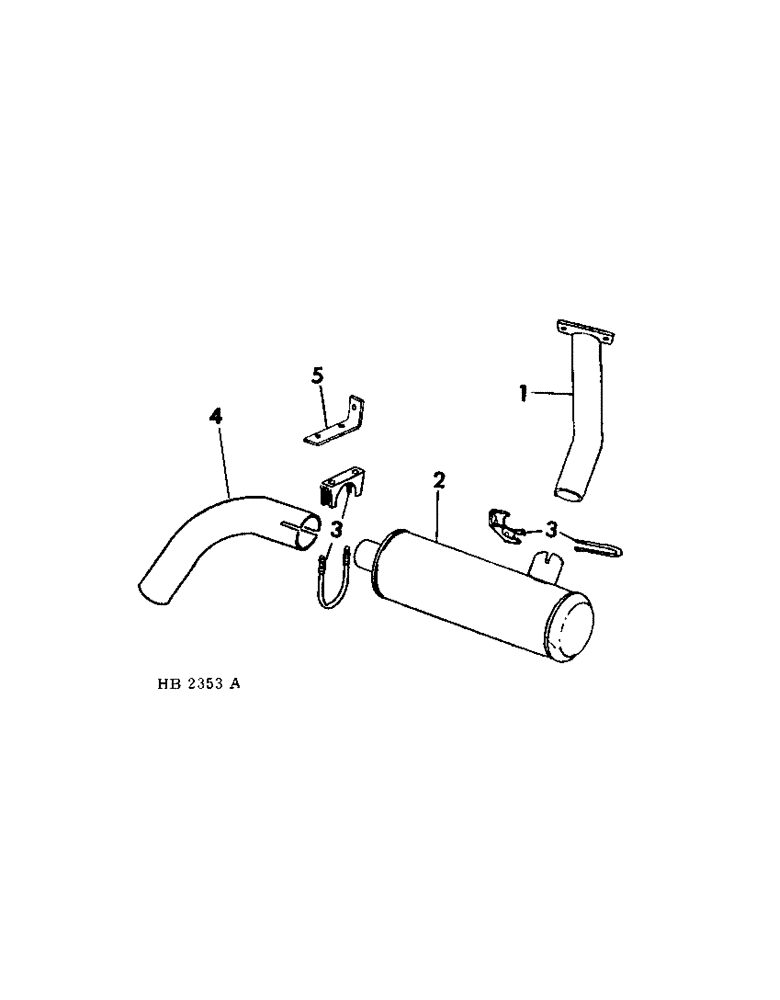

Схема запчастей Case IH 5000 - (12-45[A]) - POWER, EXHAUST MUFFLER AND CONNECTIONS, HB-225 GAS ENGINE FOR USE ON 5000 AND 5500 WINDROWERS Power
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

830149C1

PIPE

ASSY, exhaust

1шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

829176C91

MUFFLER

exhaust, Includes 1-444578 plug

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4 NPT sq hd brass

1шт.

3

170572R91

CLAMP

ASSY, exhaust

2шт.

4

830221C1

PIPE

tail

1шт.

5

830700C1

SUPPORT

tail pipe clamp

1шт.
