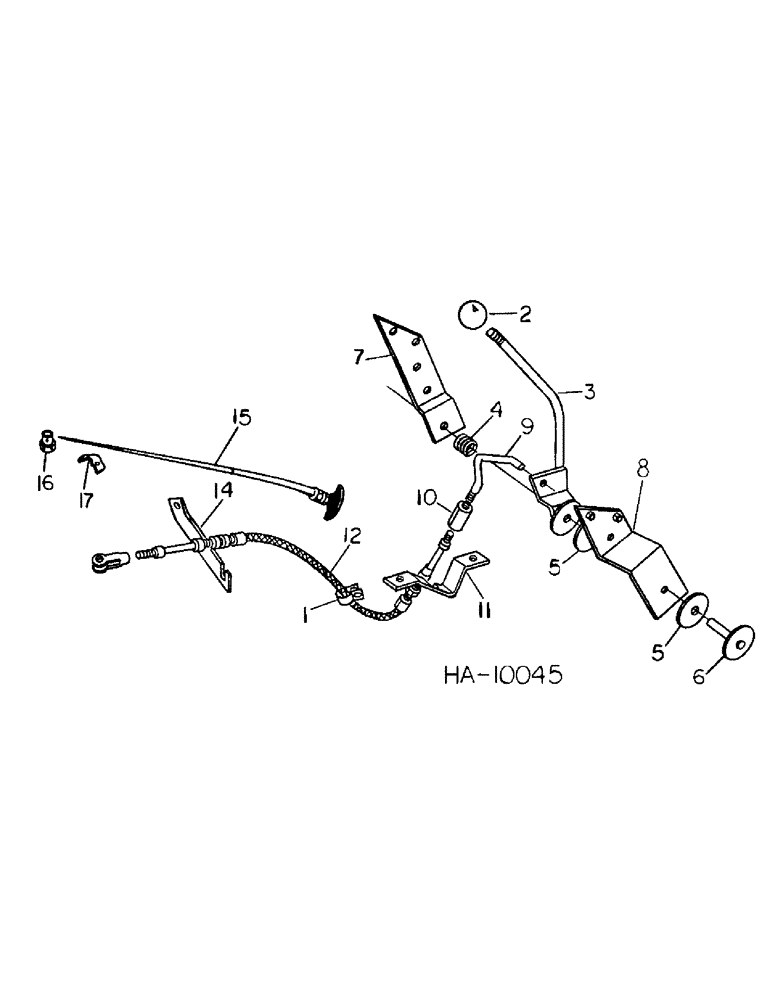

Запчасти Case IH 5000 (12-42) - POWER, POWER CONTROLS D-239 DIESEL ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power
№
Артикул
Название
Примечание
Количество
1
850218C1
CLAMP
throttle cable
1шт.
2
610638R1
KNOB
throttle control rod
1шт.
3
828463C2
LEVER
ASSY, throttle control
1шт.
4
M1015
SPRING
friction
1шт.
5
58666D
FRICTION WASHER
WASHER, friction
2шт.
6
828908C1
SHAFT
ASSY, throttle lever pivot
1шт.
178374R1
WASHER
.531 x 1.250 x .054
1шт.
19442R1
PIN,3/16" x 1 1/2", Coiled
1шт.
7
828866C2
SUPPORT
throttle lever and shaft inner
1шт.
8
823623C1
SUPPORT
ASSY, throttle lever and shaft outer, Replaces 829857C1
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex hd
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
9
828864C1
ROD
throttle cable adj
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
10
828907C1
TURNBUCKLE
throttle control
1шт.
11
828662C1
SUPPORT
throttle cable
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 hex flange lock
2шт.
12
597842R1
CABLE
throttle
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
13
NLS
NO LONGER SERVICED
CLEVIS, #10 adj rod end
1шт.
138082
CLEVIS PIN,3/16" x .580"
PIN, 3/16 x 19/32 rod end
1шт.
103361
PIN, SPLIT (COTTER)
PIN, 1/16 x 1/2 cotter
1шт.
14
829239C1
SUPPORT, throttle cable
1шт.
15
829235C1
CABLE
fuel control
1шт.
120369
NUT,3/8"-24, G5
1шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
16
396388R1
PIVOT
fuel control cable swivel
1шт.
169-133
SCREW,Sl Fil Hd, #8 - 32 x 3/8"
8-32 x 3/8 fil hd sltd mach
1шт.
446179
WASHER,#12
.250 x .500 x .036
1шт.
NLS
NO LONGER SERVICED
PIN, 1/16 x 1/2 cotter
1шт.
17
32596D
FASTENER
CLAMP, fuel control cable
2шт.
436736
SCREW,Slotted Pan Hd, #10-24 x 1"
10-24 x 1 pan hd sltd mach
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
Выбрано товаров: 37
