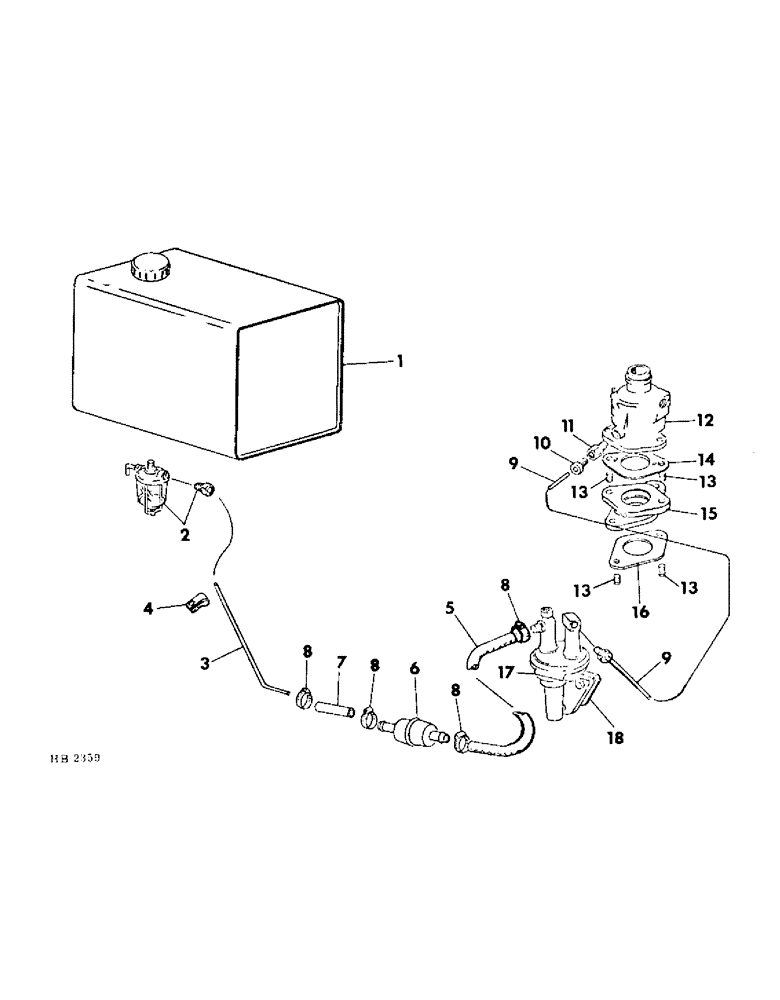

Запчасти Case IH 5000 (12-32) - POWER, FUEL SYSTEM HB-225 GAS ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power

1

TANK ASSY, fuel, For service parts refer to fuel tank & supports

1шт.

2

61782C91

STRAINER ASSY.

STRAINER ASSY, fuel, For service parts refer to fuel strainer

1шт.

2

61782C91GV

BOWL

Value, Fuel Strainer

1шт.

3

827723C1

TUBE,0.312" OD, 11, 6" Length

fuel strainer to filter hose

1шт.

4

299402C1

CLAMP

tube

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

827145C1

HOSE

, Serial Range: HOSE,-pump

1шт.

6

417917C91

FILTER

fuel

1шт.

7

850437C2

HOSE

filter

1шт.

8

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

9

830141C1

TUBE

fuel, Serial Range: pump-carburetor

1шт.

10

222-503

TUBE NUT,1/2"-20

NUT, 5/16 tube

1шт.

11

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, 5/16 hi duty tube

1шт.

12

827052C92

CARBURETOR

ASSY, For service order 1-831914C91 carburetor assy

1шт.

12

831914C91

CARBURETOR

ASSY, For service parts, Serial Range: refer-carburetor

1шт.

13

387139C1

STUD, adaptor

4шт.

120369

NUT,3/8"-24, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

827053C1

GASKET

carburetor

2шт.

15

830170C1

ADAPTER

ADAPTOR, carburetor

1шт.

16

384859C2

GASKET

adaptor

1шт.

17

830460C1

PUMP

fuel

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

830461C1

GASKET

fuel pump flange

1шт.
