Запчасти Case IH 5000 (12-30) - POWER, ENGINE AND MOUNTING D-239 DIESEL ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power

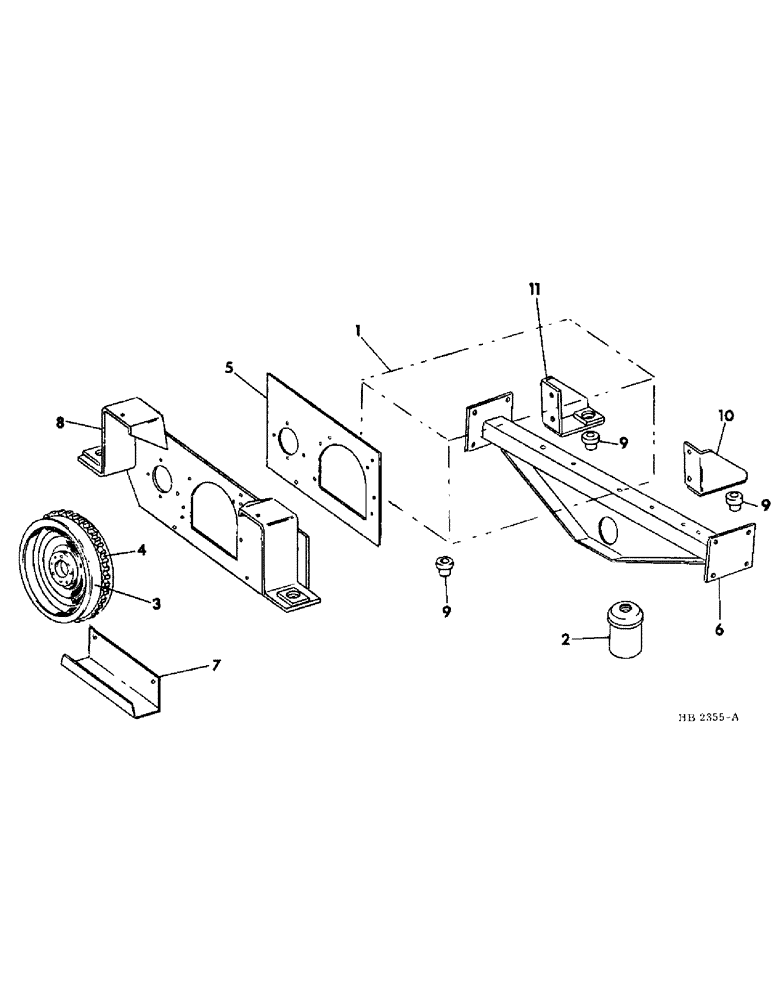

Схема запчастей Case IH 5000 - (12-30) - POWER, ENGINE AND MOUNTING D-239 DIESEL ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power

Артикул

Название

Примечание

Количество

1

3218000R93

ENGINE

ASSY, IH D-239 diesel, For service parts refer to parts catalog Engine 4

1шт.

2

398080R2

ENGINE OIL FILTER

FILTER, oil

1шт.

444688

PLUG

1/8-27 hex soc pipe, oil filter base

1шт.

3

FLYWHEEL WITH RING GEAR ASSY, w/o pins, For service order 1-831322C91 flywheel assy and 1-827803C2 adaptor plate

1шт.

3

831322C91

FLYWHEEL

W/RING GEAR ASSY, Includes 1-60883H gear and 2-19269R1 pins

1шт.

19269R1

LOCK PIN,3/8" x 1", Slotted

PIN, 3/8" x 1", Slotted

2шт.

3055156R2

BOLT,1/2" - 20 x 33.5mm

flywheel

7шт.

4

60883H

RING GEAR

GEAR, ring

1шт.

5

829213C1

PLATE, mounting locating

1шт.

6

828783C2

BASE

ASSY, engine rear support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex serrated flange

8шт.

7

828904C2

GUARD, flywheel

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, For use to engine front support

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

For use to engine block Hex, 3/8"-16 x 1 3/4", G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

828612C1

SUPPORT ASSY, engine front

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt w/597670R1 nut

2шт.

597670R1

NUT

1/2-13 prevailing torque opt w/9413967 nut

2шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

460908R1

WASHER

.531 x 1.500 x .105

2шт.

9

830217C1

INSULATOR

engine mount, For service order 886686C1 insulator

4шт.

9

886686C1

ANCHOR

INSULATOR, engine mount

4шт.

10

828610C1

SUPPORT ASSY, engine rear LH

1шт.

11

828611C1

SUPPORT ASSY, engine rear RH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/4 hex-hd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

460908R1

WASHER

.531 x 1.500 x .105

2шт.

Выбрано товаров: 36
