Запчасти Case IH 5000 (12-26) - POWER, HB-225 GAS ENGINE DISTRIBUTOR Power

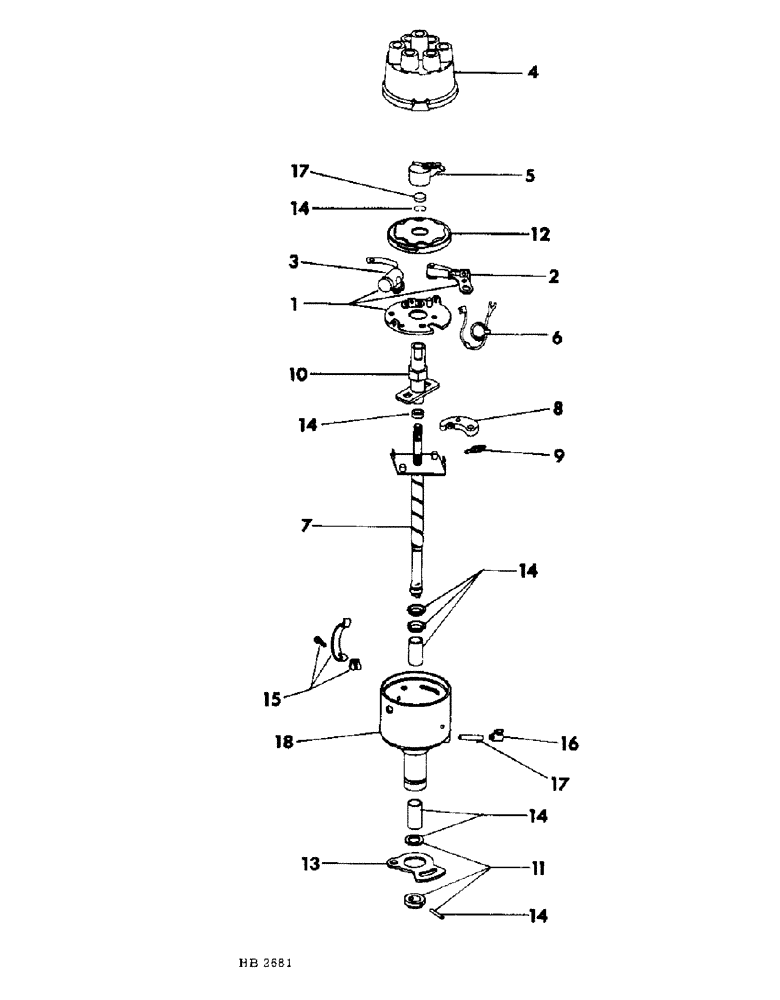

Схема запчастей Case IH 5000 - (12-26) - POWER, HB-225 GAS ENGINE DISTRIBUTOR Power

Артикул

Название

Примечание

Количество

830587C91

DISTRIBUTOR

ASSY, ignition - Prestolite no. IBR4202-S - Chrysler no. 2098513, Consists of

1шт.

1

830629C91

PLATE ASSY, breaker

1шт.

2

71468C1

CONTACT

SET, contact

1шт.

3

830630C1

CONDENSER

1шт.

4

830625C1

CAP

Not part of distributor

1шт.

5

830635C1

ROTOR

Not part of distributor

1шт.

6

830631C1

LEAD ASSY, primary

1шт.

7

830632C1

SHAFT

drive

1шт.

8

830633C1

SET

governor weight

1шт.

9

830634C1

SET

weight spring

1шт.

10

830627C1

PLATE, cam and stop

1шт.

11

830636C1

PACKAGE, shaft collar

1шт.

12

827467C1

PLATE

ASSY, seal

1шт.

13

827451C1

ARM, advance

1шт.

14

71471C1

PACKAGE, shift bearing

1шт.

15

830626C1

PACKAGE, cap spring

1шт.

16

71476C1

OILER

1шт.

17

71475C1

PACKAGE, wick and washer

1шт.

18

HOUSING, distributor, For service order 1-830587C91 distributor assy

1шт.

Выбрано товаров: 19
