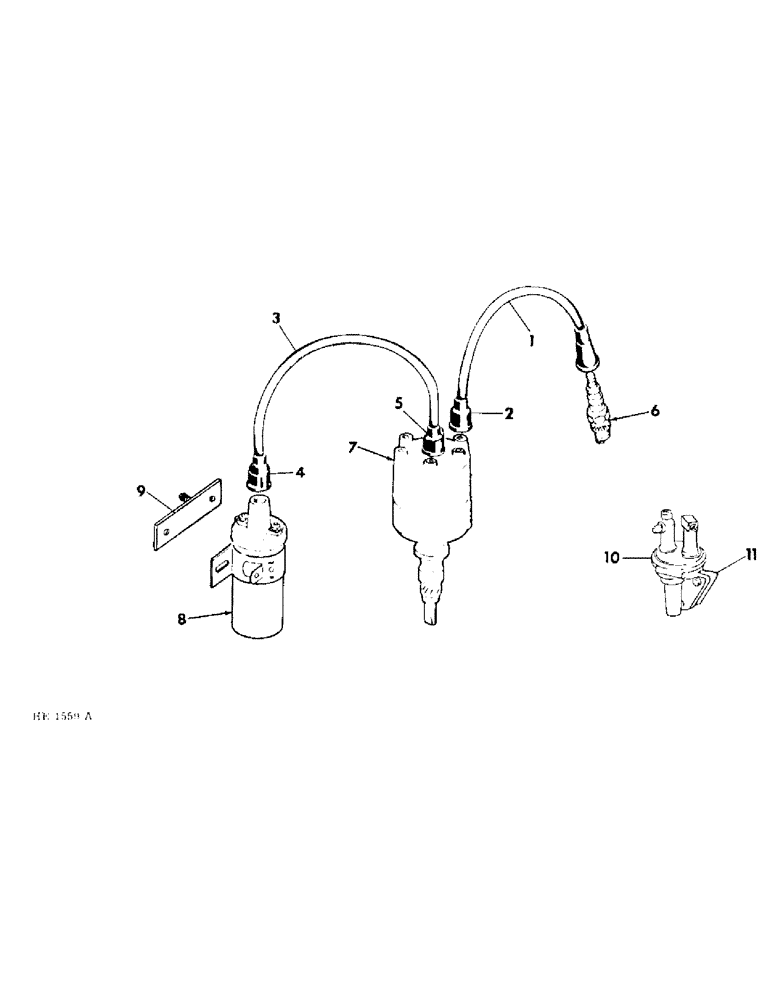

Запчасти Case IH 5000 (12-24) - POWER, HB-225 GAS ENGINE IGNITION UNIT Power

1

830582C1

CABLE

spark plug no. 1, 2, 5 & 6, Chrysler P/N 3874124

4шт.

1

830583C1

PLUG

CABLE, spark plug no. 3 & 4, Chrysler P/N 3874099

2шт.

2

830584C1

NIPPLE, LUBE

NIPPLE, spark plug cable distributor end, Chrysler P/N 2095766

6шт.

3

830585C1

CABLE

coil secondary, Chrysler P/N 3656514

1шт.

4

830586C1

NIPPLE, LUBE

NIPPLE, coil sec cable coil end, Chrysler P/N 2095768

1шт.

5

830584C1

NIPPLE, LUBE

NIPPLE, coil sec cable distributor end, Chrysler P/N 2095766

1шт.

6

BL11Y

SPARK PLUG

PLUG, spark, Chrysler P/N 3755840

6шт.

7

830857C91

DISTRIBUTOR, ignition - Prestolite no. IBR4202-S - Chrysler no. 2098513, For service order w/1-830625C1 cap and 1-830635C1 rotor which are not part of 830587C91, For service part, Serial Range: refer-distributor

1шт.

367769R1

O-RING, distributor mtg, Chrysler P/N 2095630

1шт.

830588C1

GASKET

distributor oil, Chrysler P/N 2095740

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

COIL ASSY, ignition, For service parts refer to section 8

1шт.

9

830462C1

BRACKET, coil mounting, Chrysler P/N 20-61

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

830460C1

PUMP

ASSY, fuel, Chrysler P/N 56-53

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

830461C1

GASKET

fuel pump flange, part of set, Chrysler P/N 3577870

1шт.
