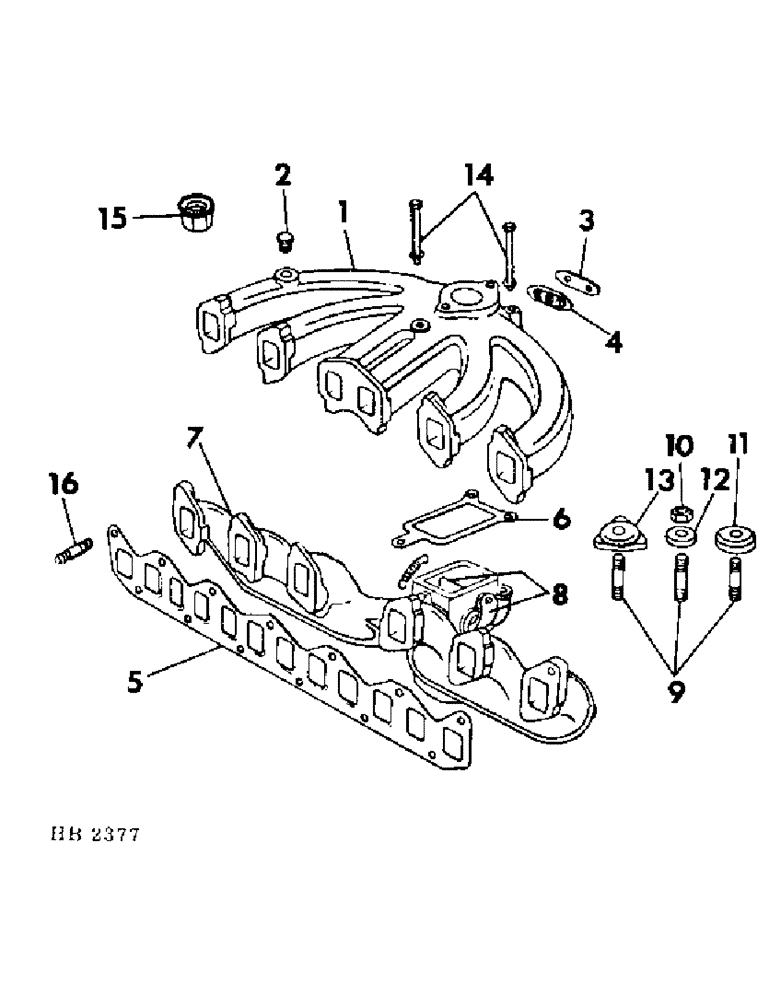

Запчасти Case IH 5000 (12-23) - POWER, HB-225 GAS ENGINE MANIFOLDS Power

1

830607C91

MANIFOLD

ASSY, intake, Consists of, Chrysler P/N 3837608

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

830609C1

COVER

1шт.

830610C1

GASKET

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

830574C1

PLUG

vacuum hole, Chrysler P/N 1859127

1шт.

3

830609C1

COVER

exhaust gas recirculation flange, Chrysler P/N 3671447

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

830610C1

GASKET

exhaust gas recirculation, Chrysler P/N 3671425

1шт.

5

830612C1

MANIFOLD GASKET

intake and exhaust manifold, Chrysler P/N 3744831

1шт.

6

830613C1

GASKET

intake to exhaust manifold, Chrysler P/N 3751635

1шт.

7

830614C91

MANIFOLD

ASSY, Chrysler P/N 3744827

1шт.

8

830615C1

PACKAGE, exhaust manifold heat control, Chrysler P/N 3420047

1шт.

9

830616C1

STUD

Chrysler P/N 6030209

13шт.

120368

NUT,5/16"-24, G5

11шт.

10

830617C1

NUT

exhaust manifold upper, Chrysler P/N 6030210

2шт.

11

830618C1

WASHER

intake manifold, Chrysler P/N 2121223

1шт.

12

830619C1

WASHER

exhaust manifold upper ends, Chrysler P/N 3751637

2шт.

13

830620C1

WASHER

intake and exhaust manifold, Chrysler P/N 3751636

10шт.

14

830621C1

BOLT

5/16-18 x 3-3/8 hex-hd w/1.62 thread intake to exhaust manifold, Chrysler P/N 6030003

2шт.

15

830623C1

NUT

AND WASHER, Chrysler P/N 6025020

1шт.

16

830624C1

STUD

1.88 long exhaust manifold outlet, Chrysler P/N 6024380

2шт.
