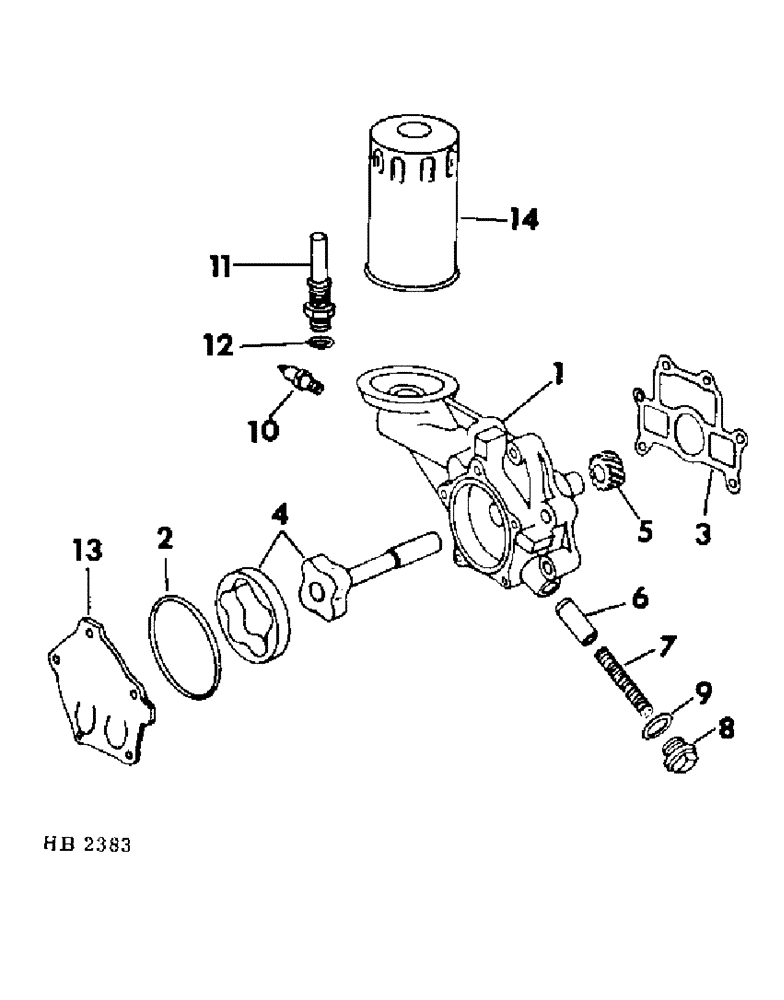

Запчасти Case IH 5000 (12-21) - POWER, HB-225 GAS ENGINE OIL PUMP Power

1

830592C91

PUMP

ASSY, oil, Consists of, Chrysler P/N 2808507

1шт.

830593C1

GASKET

1шт.

830594C1

GASKET

1шт.

830595C1

SHAFT

1шт.

830596C1

GEAR

1шт.

830597C1

PLUNGER

1шт.

830598C1

SPRING

1шт.

830599C1

CAP

1шт.

830600C1

GASKET

1шт.

NSS

NOT SOLD SEPARAT

COVER

1шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

5/16-18 x 1-5/8 hex-hd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

830593C1

GASKET

oil pump cover, Chrysler P/N 2268921

1шт.

3

830594C1

GASKET

oil pump body, part of set, Chrysler 2121404

1шт.

4

830595C1

SHAFT

oil pump drive, Chrysler P/N 2084415

1шт.

5

830596C1

GEAR

drive shaft, Chrysler P/N 1947225

1шт.

6

830597C1

PLUNGER

oil pressure relief, Chrysler P/N 2120764

1шт.

7

830598C1

SPRING

oil pressure relief valve, Chrysler P/N 1737742

1шт.

8

830599C1

CAP

oil pressure relief valve, Chrysler P/N 618621

1шт.

9

830600C1

GASKET

oil pressure relief valve, part of set, Chrysler P/N 618622

1шт.

10

830602C1

SWITCH

oil sending unit, Chrysler P/N 3004105

1шт.

11

830463C91

PIPE

oil filter stand, Includes 1-379181R1 o-ring, Chrysler P/N 3577848

1шт.

12

379181R1

O-RING,0.614" ID x 0.07" Width

stand pipe, Chrysler P/N 2120017

1шт.

13

COVER, oil pump, For service 1-830592C91 pump assy

1шт.

14

830160C1

FILTER

engine oil, Not part of engine

1шт.
