Запчасти Case IH 5000 (12-19) - POWER, HB-225 GAS ENGINE WATER PUMP Power

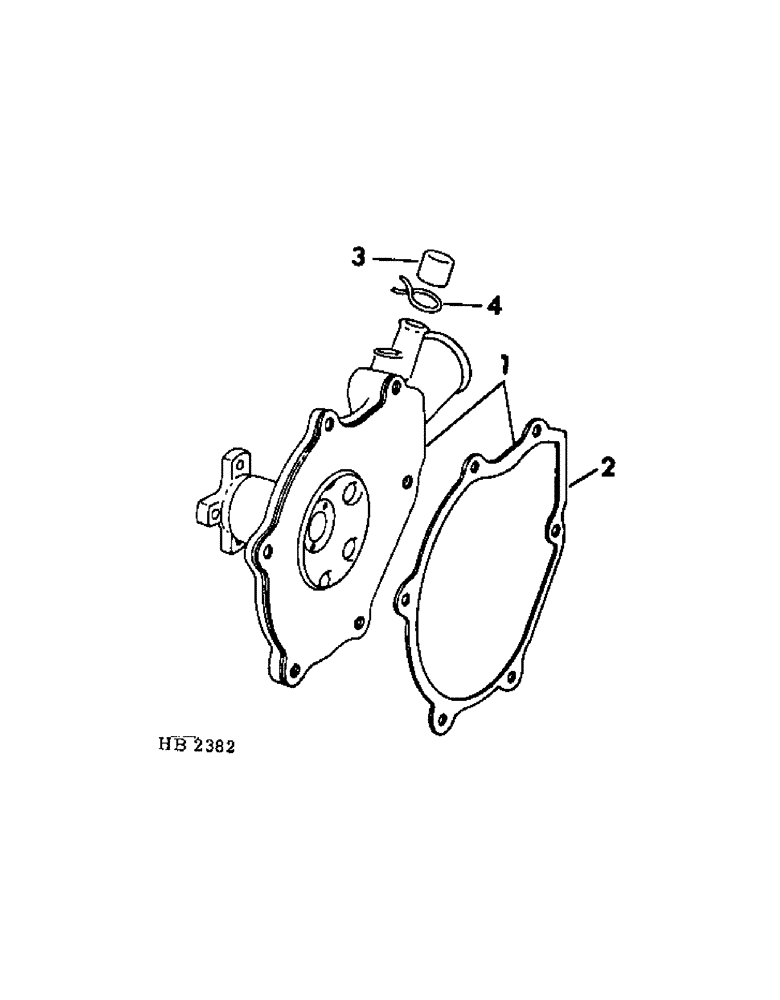

Схема запчастей Case IH 5000 - (12-19) - POWER, HB-225 GAS ENGINE WATER PUMP Power

Артикул

Название

Примечание

Количество

1

830509C91

PUMP

ASSY, water, Includes 1-830510C1 gasket, Chrysler P/N 2808679

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

830511C1

WASHER, bevel spring, Chrysler P/N 6022190

4шт.

2

830510C1

GASKET

water pump int plate, part of set, Chrysler P/N 1947523

1шт.

3

830512C1

CAP

heater hose, Chrysler P/N 2128425

1шт.

4

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, heater hole cap, Chrysler P/N 111606

1шт.

Выбрано товаров: 7
