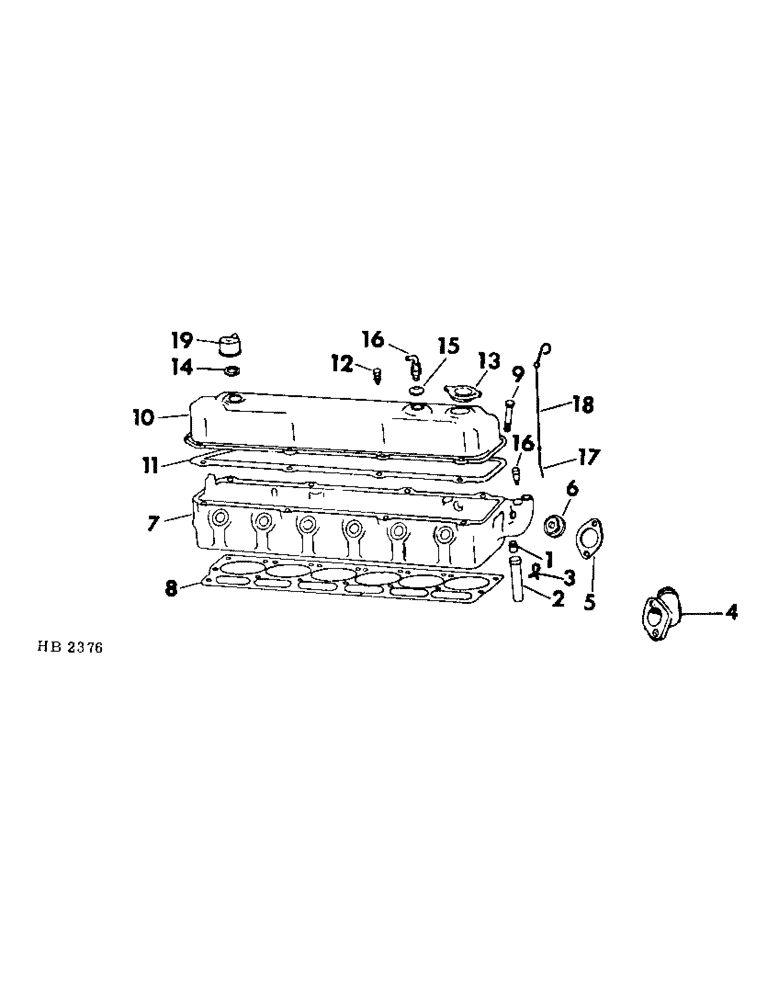

Запчасти Case IH 5000 (12-17) - POWER, HB-225 GAS ENGINE CYLINDER HEAD AND COVER Power

1

830513C1

FITTING

water pump by-pass, Chrysler P/N 1947643

1шт.

2

HOSE, 5/18 I.D. x 3-1/2 inch water by-pass, For service order from bulk stock no. 995108R1

1шт.

3

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, by-pass hose, Chrysler P/N 111606

2шт.

4

830515C1

ELBOW

cylinder water outlet, Chrysler P/N 2121524

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

830516C1

GASKET

outlet elbow, part of set, Chrysler P/N 1947671

1шт.

6

827499C91

KIT

THERMOSTAT, 160 deg w/gasket, For service order w/1-830516C1 gasket

1шт.

7

830545C1

HEAD

cylinder, Chrysler P/N 4027598

1шт.

444688

PLUG

1/8 pipe cyl head

1шт.

830574C1

PLUG

3/8 pipe cyl head, Chrysler P/N 1859127

1шт.

8

830572C1

GASKET

cylinder head, part of set, Chrysler P/N 2843182

1шт.

9

830573C1

SCREW,Cyl

cylinder head, Chrysler P/N 1947687

14шт.

10

830575C1

COVER

cylinder head, Chrysler P/N 3769672

1шт.

11

830576C1

CYLINDER HEAD GASKET

cylinder head cover, part of set, Chrysler P/N 2899250

1шт.

12

830577C1

SCREW, cylinder head cover, Chrysler P/N 6022202

8шт.

120386

WASHER

.312 x .734 x .051

8шт.

13

830580C1

CAP

oil filler, Chrysler P/N 2946051

1шт.

14

830578C1

GROMMET

crankcase vent, Chrysler P/N 2946079

1шт.

15

830579C1

GROMMET

crankcase vent valve, Chrysler P/N 3751510

1шт.

16

830581C1

VALVE

crankcase vent, Chrysler P/N 3671076

1шт.

17

830599C1

CAP

TUBE, oil level indicator, Chrysler P/N 1859788

1шт.

18

830590C1

INDICATOR

oil lever, Chrysler P/N 2453722

1шт.

19

830468C1

CAP

crankcase vent, Chrysler P/N 3462094

1шт.
