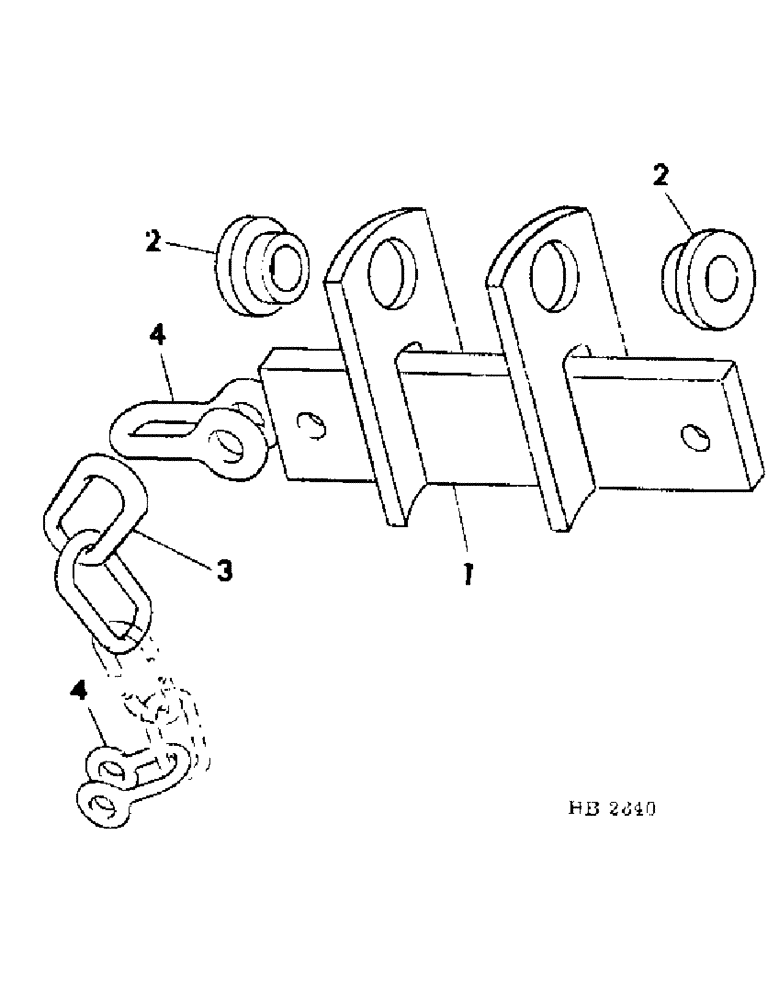

Запчасти Case IH 5000 (17-08) - MOUNTED EQUIPMENT, CONDITIONER LIFT SUPPORT AND REAR CHAINS, CHASSIS MOUNTED Mounted Equipment

1

831275C1

SUPPORT

ASSY, transport lift chain

1шт.

2

831586C1

BUSHING

support pivot

2шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4-10 x 4-1/2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

831336C1

CHAIN (AG)

CHAIN, transport lift

2шт.

4

455369R2

CLEVIS

lift chain

4шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 dld

4шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

4шт.
