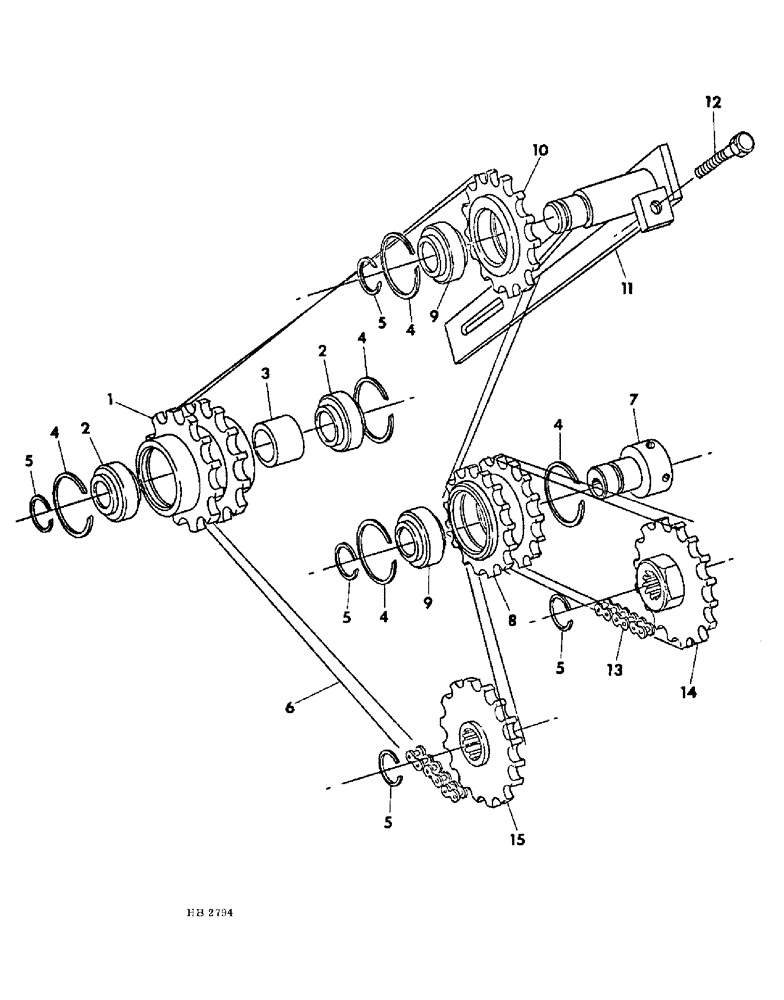

Запчасти Case IH 5000 (17-03) - MOUNTED EQUIPMENT, CONDITIONER LOWER DRIVE, CHASSIS MOUNTED Mounted Equipment

1

831701C1

SPROCKET ASSY.

SPROCKET ASSY, 22T roll drive dual

1шт.

2

117510R91

BEARING, BALL

BEARING, sprocket

2шт.

3

829088C1

SPACER

sprocket bearing

1шт.

4

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, , sprocket brg 2.812", Int, #281

5шт.

5

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, sprocket

5шт.

6

CHAIN, lower roll and camshaft sprocket drive, Use 139 links of 3/4 inch single pitch roller chain from a 10 ft roll 611362R91 and add one connecting link 574532R91

1шт.

574532R91

CLIP, SPRING

LINK, connecting

1шт.

7

828069C1

SHAFT

idler sprocket cam

1шт.

8

828070C1

SPROCKET ASSY.

SPROCKET ASSY, 20T roll drive dual

1шт.

9

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, sprocket

2шт.

10

831750C1

SPROCKET ASSY.

SPROCKET ASSY, 22T roll drive tightener

1шт.

11

831722C1

BRACKET

ASSY, roll drive

1шт.

271789

CURTAIN,Hex, 3/4" - 16 x 1 1/2", Gr 5

3/4-16 x 1-1/2 hex-hd

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 crg

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

1шт.

467750R1

WASHER

.781 x 1.500 x .105 flat

1шт.

12

832327C1

BOLT,Hex, 1/2" - 13 x 5.50", Gr 5

tightener bracket adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

.531 x 1.250 x .056 flat

1шт.

13

CHAIN, upper roll drive, Use 39 links of 3/4 inch single pitch roller chain from a 10 ft roll 611362R91 and add one connecting link 574532R91 and one offset link 612612R91

1шт.

574532R91

CLIP, SPRING

LINK, connecting

1шт.

612612R91

CHAIN LINK

LINK, offset

1шт.

14

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T upper roll drive

1шт.

15

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T lower roll drive

1шт.
