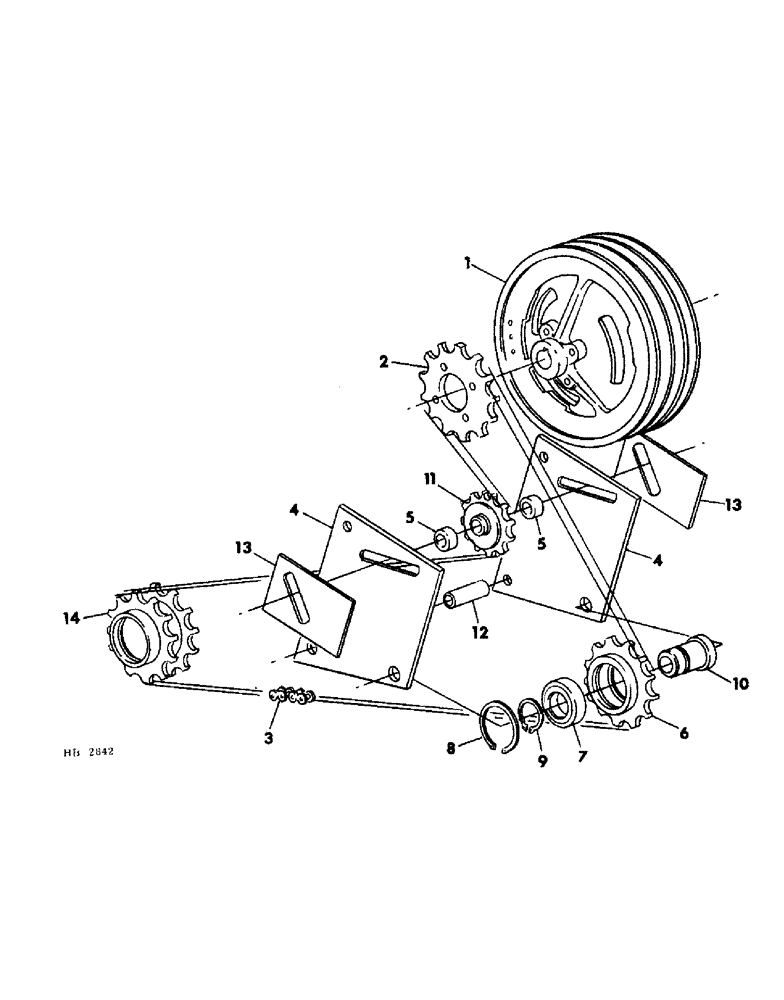

Запчасти Case IH 5000 (17-02) - MOUNTED EQUIPMENT, CONDITIONER UPPER MAIN DRIVE, CHASSIS MOUNTED Mounted Equipment

1

832332C1

PULLEY

header drive, For service parts refer to header drive RH section no. 07

1шт.

2

832316C1

SPROCKET ASSY.

SPROCKET, 24T hay conditioner main drive

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 x 2-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

CHAIN, H.C. main drive, Use 121 links of 3/4 inch pitch roller chain from a 10 foot roll 611362R91 and add one connecting link 574532R91 and one offset link 612612R91

1шт.

574532R91

CLIP, SPRING

LINK, connecting

1шт.

612612R91

CHAIN LINK

LINK, offset

1шт.

4

832319C1

PLATE

main drive chain

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

432984R2

SPACER,1/2" X-Strng Pipe x 1 7/8"

tightener mtg plate

1шт.

6

831750C1

SPROCKET ASSY.

SPROCKET ASSY, 22T hay conditioner main drive rear

1шт.

7

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, sprocket

1шт.

8

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, , sprocket brg 2.812", Int, #281

2шт.

9

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, sprocket

1шт.

10

832318C1

SHAFT

idler sprocket mtg

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 x 3-1/4 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

21753R1

WASHER

.781 x 1.500 x .054 flat (As required)

2шт.

11

825512C1

SPROCKET ASSY.

SPROCKET ASSY, 15T hay conditioner main drive chain tightener

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

350515R1

WASHER

.656 x 1.000 x .054 flat

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

12

M42297

SPACER

tightener sprocket

2шт.

464623R1

WASHER

.656 x 1.500 x .105 flat

2шт.

13

832399C1

BAR

tightener sprocket adjusting

2шт.

14

831701C1

SPROCKET ASSY.

SPROCKET ASSY, 22T roll drive dual, For service parts refer to conditioner lower drive

1шт.
