Запчасти Case IH 5000 (17-01) - MOUNTED EQUIPMENT, CONDITIONER MAIN FRAME, CHASSIS MOUNTED Mounted Equipment

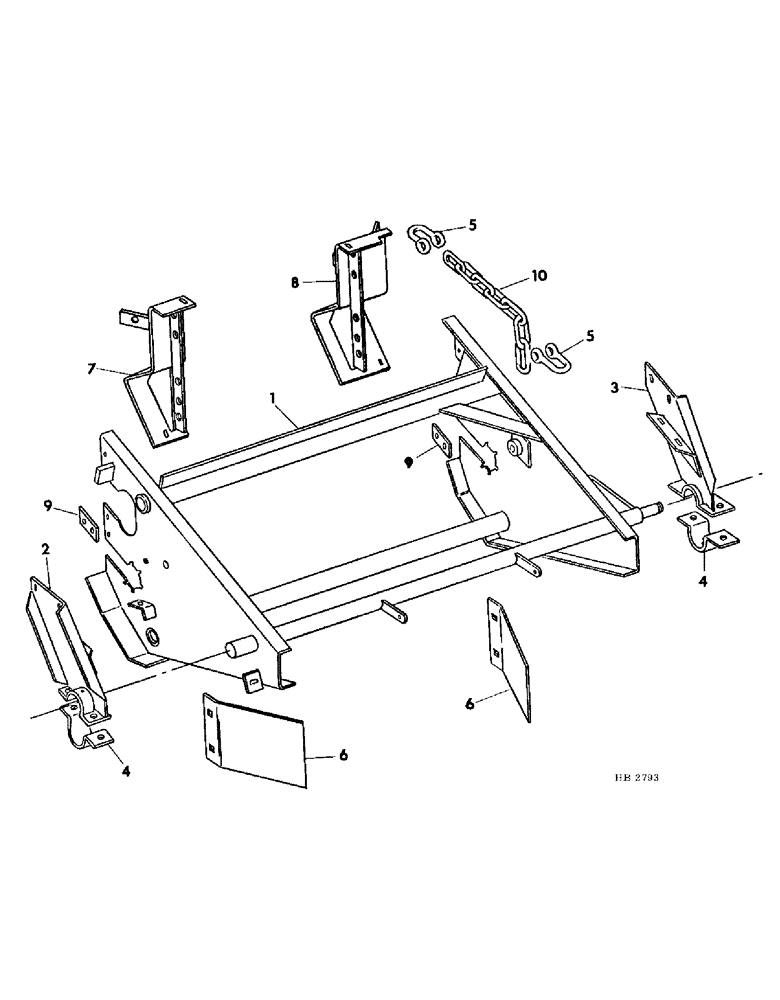

Схема запчастей Case IH 5000 - (17-01) - MOUNTED EQUIPMENT, CONDITIONER MAIN FRAME, CHASSIS MOUNTED Mounted Equipment

Артикул

Название

Примечание

Количество

1

831272C2

FRAME

ASSY, hay conditioner

1шт.

2

831324C2

SUPPORT

ASSY, frame pivot LH

1шт.

3

831325C2

SUPPORT

ASSY, frame pivot RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prev-torque lock

8шт.

178374R1

WASHER

.531 x 1.250 x .054 flat

8шт.

4

831338C1

CLAMP

frame pivot

2шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 45 deg self tap lub

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

455369R2

CLEVIS

lift chain

4шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 dld

4шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

4шт.

6

831729C1

DEFLECTOR

crop

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

832391C1

GUARD

ASSY, chain drive LH

1шт.

8

832389C1

GUARD

ASSY, chain drive RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

10шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

3шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

619856R1

WASHER

.406 x 1.000 x .056 flat

2шт.

9

831337C1

BAR

bearing mounting filler

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

595942R2

CHAIN (AG)

CHAIN, H.C. lift

2шт.

Выбрано товаров: 31
