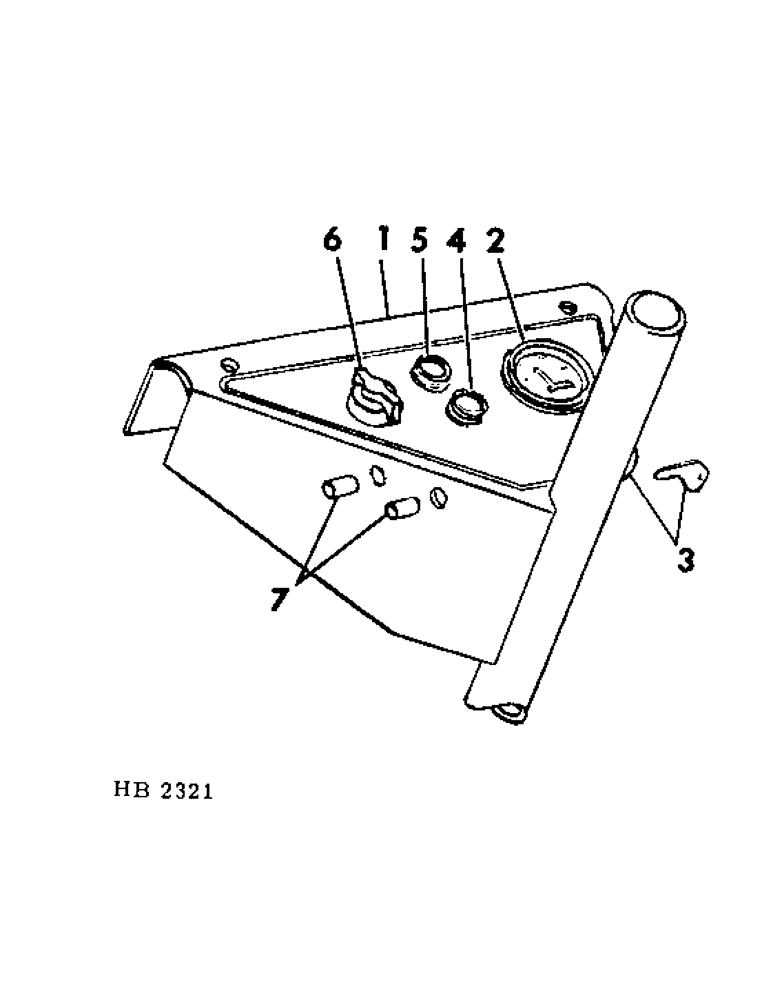

Запчасти Case IH 5000 (11-03) - INSTRUMENTS, INSTRUMENT PANEL, FOR USE ON 4000 WINDROWERS & ON 5000 WINDROWERS PRIOR TO S/N 1001 Instruments

1

PANEL, instrument, For service part refer to steering controls section no. 5

1шт.

2

677162R91

GAUGE

ASSY, temperature indicator

1шт.

3

677221R91

SWITCH

ASSY, key ignition w/keys

1шт.

619743C1

KEY

ASSY, ignition, Includes 2 keys

1шт.

4

829109C91

LIGHT

LAMP, oil pressure indicator, Includes 1-27763R1 lamp

1шт.

27763R1

LAMP,C2F, #1895R, 14V

no. 1895

1шт.

5

829110C91

LIGHT

LAMP, alternator indicator, Includes 1-27763R1 lamp

1шт.

27763R1

LAMP,C2F, #1895R, 14V

no. 1895

1шт.

6

829113C1

SWITCH

light

1шт.

7

376852R91

HOUSING

HOLDER, main and light fuse

2шт.

223-31

FUSE,10 Amp, Type 3AG

30 amp

2шт.
