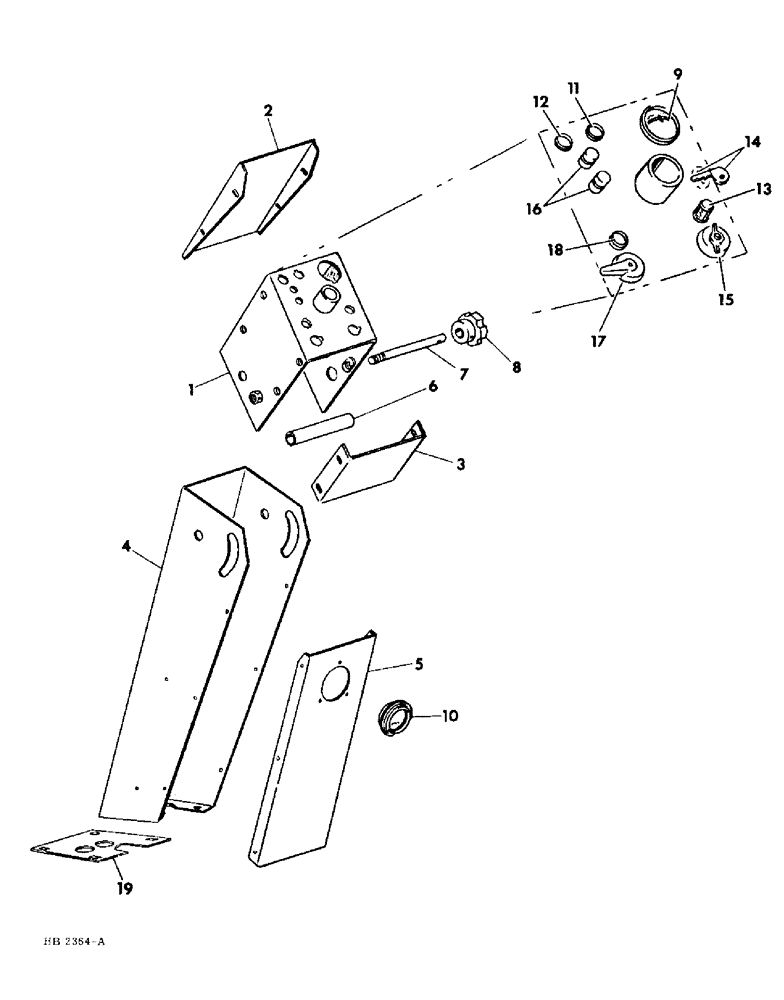

Запчасти Case IH 5000 (11-01) - INSTRUMENTS, INSTRUMENT PANEL, FOR USE ON 5500 WINDROWERS & ON 5000 WINDROWERS S/N 1001 & SINCE Instruments

1

823716C91

PANEL

ASSY, instrument, Includes 1-829184C1 instrument panel and 1-823471C1 hillside operation product graphic

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex-jam

4шт.

2

829247C1

COVER

instrument panel top

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/2-20 x 1/2 hex-hd

6шт.

180018

CONNECTING LINK

1/4-20 x 5/8 hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

97865H

WASHER

.281 x .875 x .054

8шт.

3

829484C1

CHANNEL

instrument panel lower cover

1шт.

4

823174C91

PEDESTAL

steering, Includes 1-830842C1 parking brake caution product graphic

1шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1 crg

4шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

829244C1

COVER ASSY, pedestal

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

829488C1

PIPE, instrument panel spacer

1шт.

7

829495C1

STUD

instrument panel adjusting

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

8

829491C1

KNOB

instrument panel adjusting, For service order 1-128289C1 knob and 1-591184R1 pin

1шт.

8

128289C1

KNOB

instrument panel adjusting

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, , for use w/829491C1 knob 3/16" x 1 1/8", Slotted

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

for use w/128289C1 knob 3/16" x 1 1/4", Coiled

1шт.

9

677162R91

GAUGE

ASSY, temperature indicator

1шт.

10

709152C1

METER

HOURMETER ASSY, optional w/740543C1 meter

1шт.

10

740543C1

HOURMETER

ASSY, optional w/709152C1 meter

1шт.

356737R91

DAMPER

vibration

1шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

6-32 x 5/16 rd hd sltd

3шт.

492-11006

LOCK WASHER,#6

Lock, #6

3шт.

11

829109C91

LIGHT

LAMP, oil pressure, Includes 1-27763R1 lamp

1шт.

27763R1

LAMP,C2F, #1895R, 14V

1шт.

12

829110C91

LIGHT

LAMP, alternator indicator, Includes 1-27763R1 lamp

1шт.

27763R1

LAMP,C2F, #1895R, 14V

1шт.

13

887850C1

PANEL

LIGHT, instrument panel

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, panel

1шт.

14

677221R91

SWITCH

ASSY, key ignition w/keys

1шт.

619743C1

KEY

ASSY, Includes 2 keys

1шт.

15

829113C1

SWITCH

light

1шт.

16

376852R91

HOUSING

HOLDER, main and light fuse

2шт.

223-31

FUSE,10 Amp, Type 3AG

30 amp

2шт.

17

107334C91

SWITCH

flasher

1шт.

71485C1

PACKAGE

KIT, switch handle and hardware

1шт.

18

829111C91

LAMP

flasher indicator, Includes 1-27764R1 lamp

1шт.

27764R1

LAMP,C2F, #1895G, 14V

flasher

1шт.

19

830806C1

COVER

steering rod

1шт.
