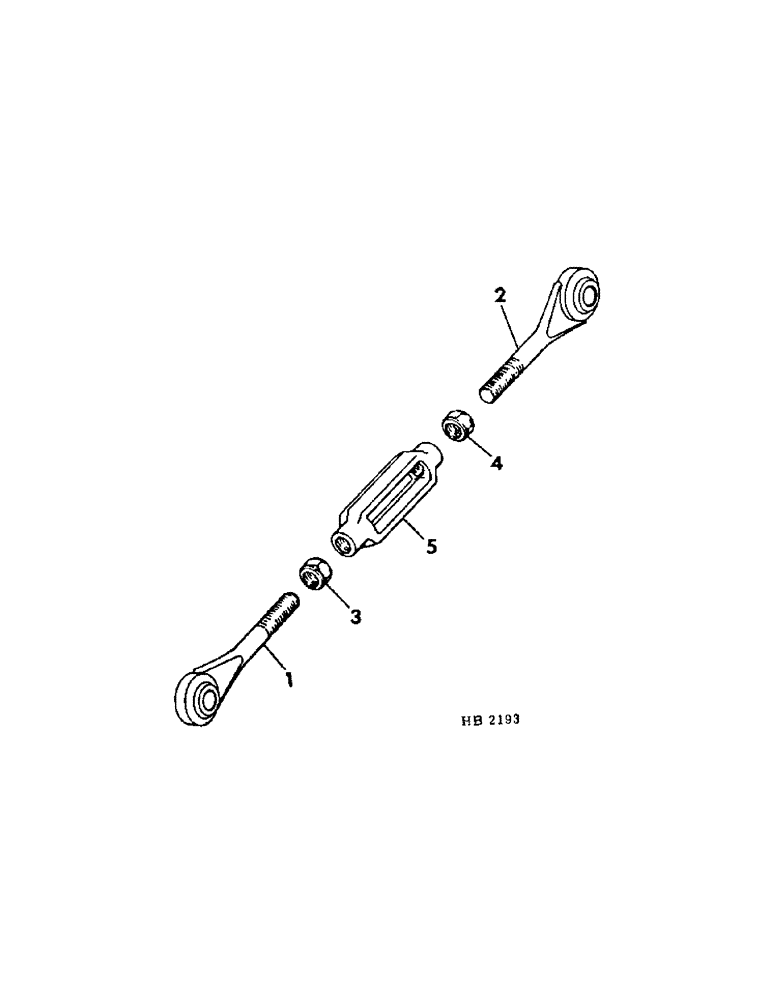

Запчасти Case IH 5000 (09-12) - FRAME, HEADER CENTER LINK (12) - FRAME

1

596142R91

LINK

ASSY, header center rear 10.88 in LH thread, single auger header

1шт.

1

829524C1

LINK

ASSY, header center rear 13.30 in LH thread, draper header prior to header serial no. 3101

1шт.

1

832463C1

LINK

ASSY, header center rear 15.75 in LH thread, draper header serial no. 3101 and since

1шт.

595687R91

LINK

ASSY, header center 6.88 in LH thread, dual auger header

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4-10 x 3-1/2 hex hd draper header

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Single and dual header Hex, 3/4"-10 x 3", G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

596141R91

LINK

ASSY, header center front 10.88 in RH thread, single auger header

1шт.

2

829525C1

LINK

ASSY, header center front 13.30 in RH thread, draper header prior to header serial no. 3101

1шт.

2

832328C1

LINK

ASSY, header center front 11.50 in RH thread, draper header serial no. 3101 and since

1шт.

2

832328C1

LINK

ASSY, header center front 11.50 in RH thread, dual auger header

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4-10 x 3-1/2 hex hd draper header

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Single and dual auger header Hex, 3/4"-10 x 3", G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8-9 LH hex

1шт.

4

426898

NUT,Jam, 7/8"-9, G5

7/8-9 RH hex

1шт.

5

595992R1

TURNBUCKLE

1шт.
