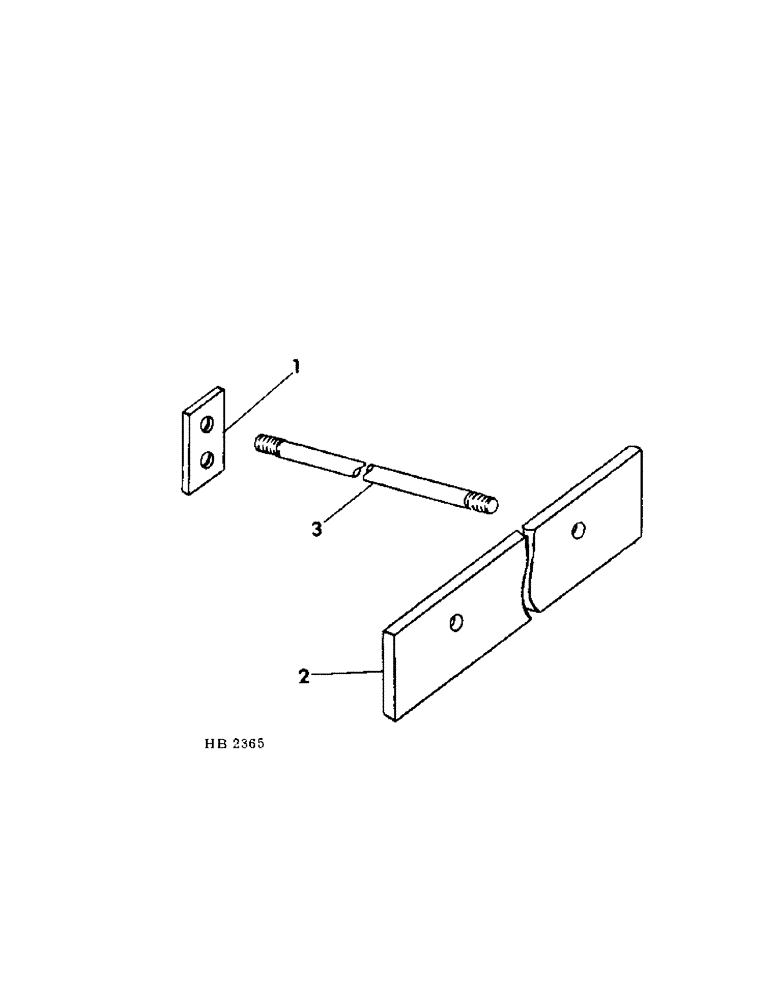

Запчасти Case IH 5000 (09-12[A]) - FRAME, WEIGHT ATTACHMENT (12) - FRAME

1

828686C1

BAR

weight bracket reinforcing

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

830783C1

BAR

weight

8шт.

3

830782C1

STUD

weight mounting

2шт.

280954

NUT,3/4"-10, G5

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 hex-jam

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

26512R1

WASHER

.781 x 2.000 x .164

2шт.
