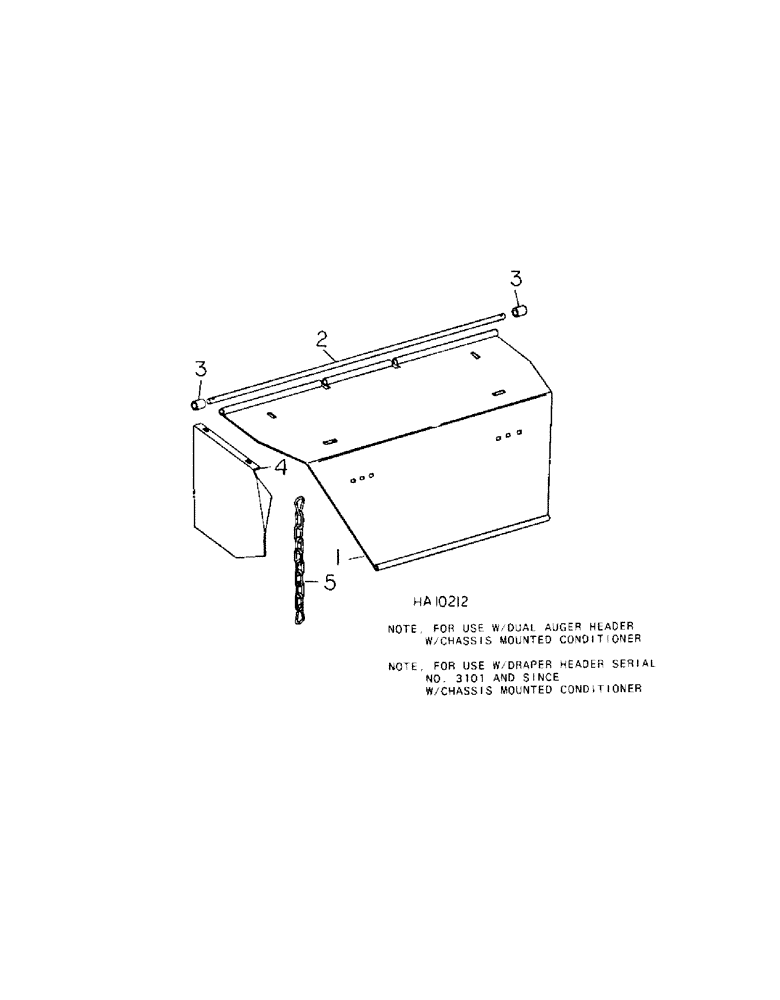

Запчасти Case IH 5000 (09-11[A]) - FRAME, REAR DEFLECTOR (12) - FRAME

1

831762C1

SHIELD

rear deflector main

1шт.

2

595951R1

ROD

shield pivot

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3

2437P

SPACER,3/8" Pipe x 1 156"

shield

2шт.

4

595953R2

SHIELD

rear deflector side LH

1шт.

4

595954R2

SHIELD

rear deflector side RH

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flanged

2шт.

5

829565C1

CHAIN (AG)

CHAIN, shield adjusting

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 hex-hd serrated

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flanged

2шт.

20893R1

WASHER

.344 x 1.000 x .105 flat

2шт.
