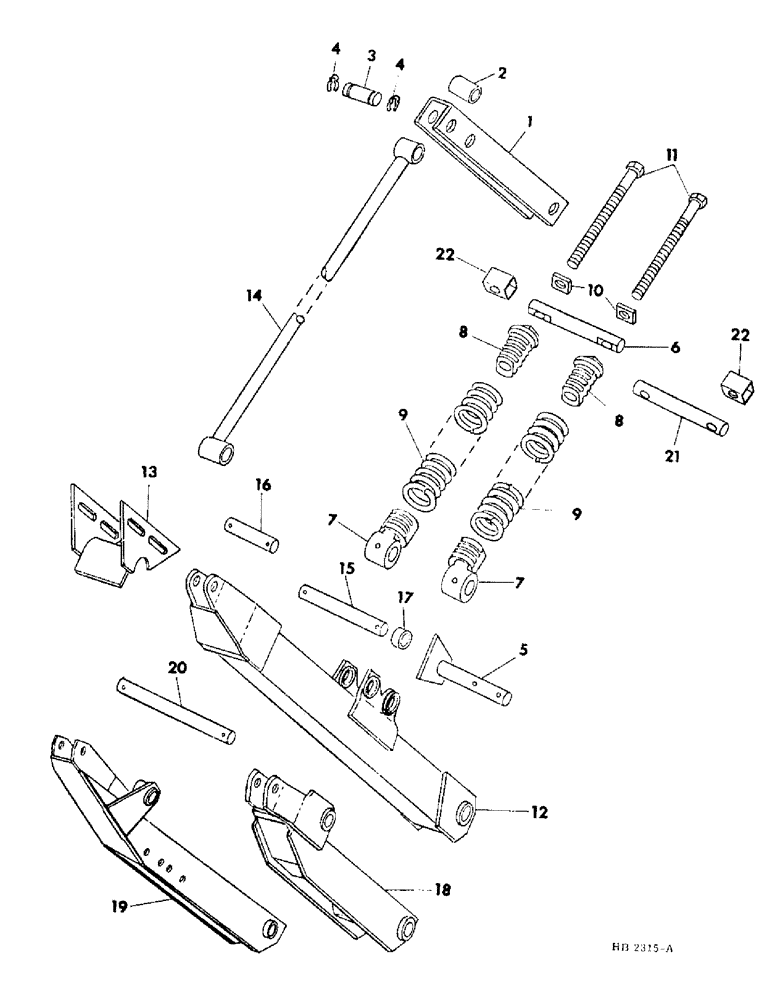

Запчасти Case IH 5000 (09-03) - FRAME, HEADER FLOATATION AND ARM, FOR SINGLE AUGER AND DRAPER HEADERS PRIOR TO 1978 (12) - FRAME

1

828371C2

CHANNEL

lift upper

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4-10 x 3-1/2 hex hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

828443C1

SPACER

upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

lift rod upper

2шт.

4

827695C1

CIRCLIP

RING, retaining

4шт.

5

828711C1

PIN

ASSY, lower lift arm pivot

2шт.

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING, 1/4-18 str lub

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

21226R1

WASHER

1.281 x 2.000 x .105

6шт.

6

828141C1

PIN

spring anchor upper with machined flats on each end, For service order 1-831855C1 pin and 2-831827C1 spacers

2шт.

7

596398R1

PLUG

spring lower

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 degree lub

4шт.

8

826734C1

LUG

PLUG, spring upper

4шт.

9

830103C1

SPRING

float draper header

4шт.

9

827694C1

SPRING

float single auger header

4шт.

10

828142C1

BAR

spring pin spacer, For use w/828141C1 pin w/machined flats on each end

4шт.

11

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

float spring tension

4шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

.781 x 1.250 x .105

4шт.

12

829408C2

ARM

ASSY, lift lower draper header

2шт.

13

829268C1

PIVOT

ASSY, lift arm front draper header

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

12шт.

14

829446C1

ROD

ASSY, lift draper header

2шт.

14

828369C1

ROD

ASSY, lift single auger header

2шт.

15

829529C1

PIN

1 x 8.9 spring anchor lower draper header

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

10шт.

16

830156C1

PIN

1 x 4.2 lift rod lower draper header, For service order 1-831671C1 pin and 1-831666C1 spacer

2шт.

16

831671C1

PIN

7 inch lift rod lower

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

17

580342R1

SPACER,1" Pipe x 1/2"

pipe 1/2 length draper header

2шт.

17

831666C1

SPACER

1-7/8 inch long draper header, Not for use with float lockout

2шт.

18

828757C1

ARM

ASSY, lift lower single auger header, For service order 1-831543C1 arm assy

2шт.

19

831543C1

ARM

ASSY, lift lower single auger header

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

20

828444C1

PIN

lift rod and spring anchor lower single auger header 9.8 inch length

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

21

831855C1

PIN

spring anchor upper w/out machined flats on each end

2шт.

22

831827C1

SPACER

spring pin, For use with 831855C1 pin

1шт.
