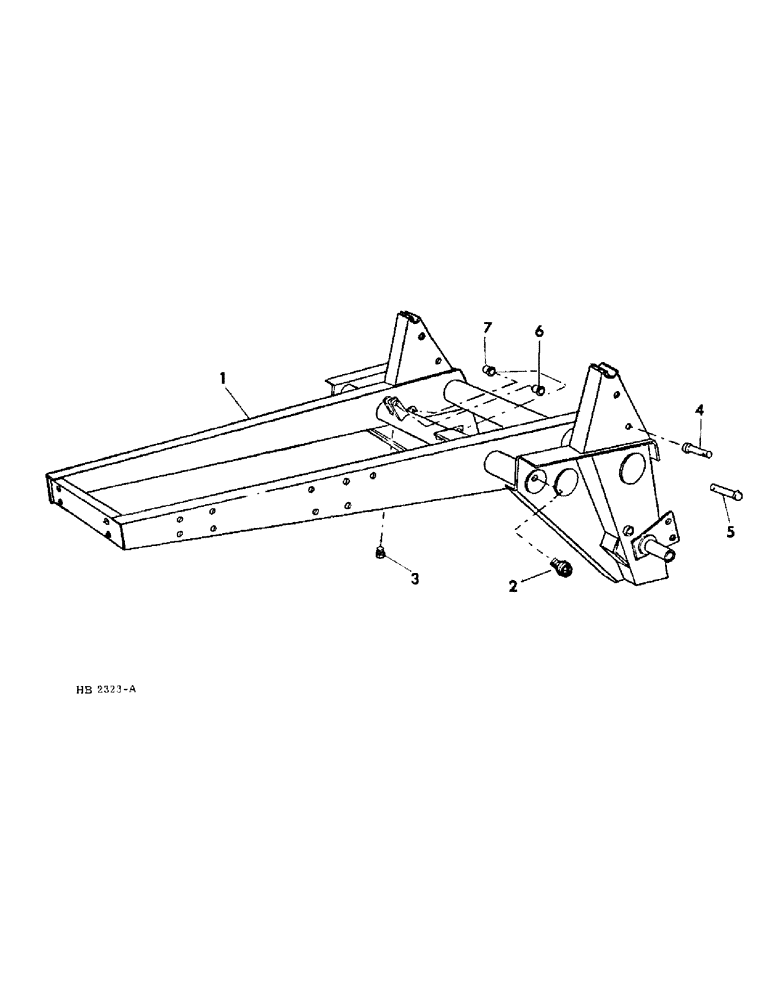

Запчасти Case IH 5000 (09-02) - FRAME, MAIN FRAME 4000, 5000 WINDROWERS (12) - FRAME

1

831394C92

FRAME ASSY, main, For use on 4000 Windrowers serial no., Serial Range: 2701-3249

1шт.

1

831632C92

FRAME ASSY, main, For use on 5000 Windrowers serial no., Serial Range: 1001-1349

1шт.

1

832077C92

FRAME ASSY, main, For use on 4000 Windrower serial no. 3250 and since, For use on 5000 Windrower serial no. 1350 and since, Includes 3-595252R1 bushing, 2-830053C1 bushing, 1-823187C1 gauge, 1-618465R91 plug and 1-102105C1 danger product graphic

1шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

823187C1

GAUGE

sight

1шт.

3

618465R91

MAGNETIC PLUG

PLUG, 1/2 magnetic pipe

1шт.

4

21668R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 std hd dld

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter header lock out

2шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2-1/4 std hd dld

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.

6

830053C1

BUSHING

brake lever support

2шт.

7

595252R1

BUSHING

brake rockshaft

3шт.
