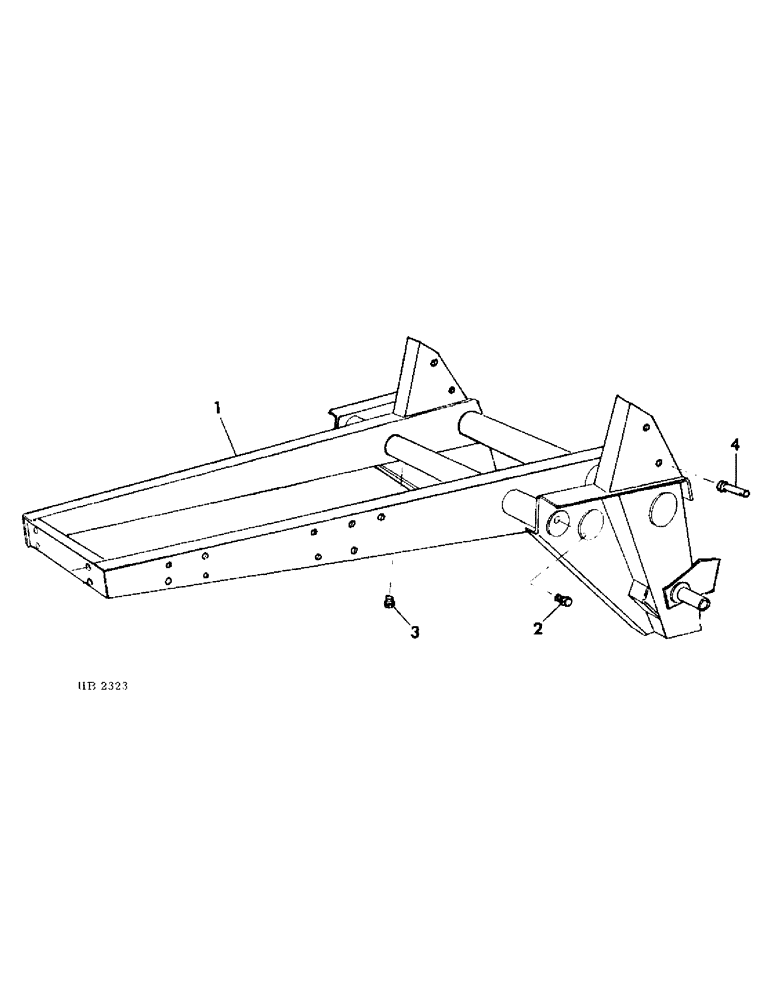

Запчасти Case IH 5000 (09-01) - FRAME, MAIN FRAME 4000, 5000, 5500 WINDROWERS (12) - FRAME

1

827652C1

FRAME ASSY, main, For use on 4000 Windrowers prior to serial no. 2701, For use on 5000 Windrowers prior to serial no. 1001, For use on 5500 Windrowers prior to serial no. 601, Includes 1-444688 plug and 1-618465R91 plug

1шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

444688

PLUG

1/8-27 hex soc pipe

1шт.

2

444589

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 sq-hd pipe

1шт.

3

618465R91

MAGNETIC PLUG

PLUG, 1/2 magnetic pipe

1шт.

4

21668R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 std hd dld header lockout

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.
