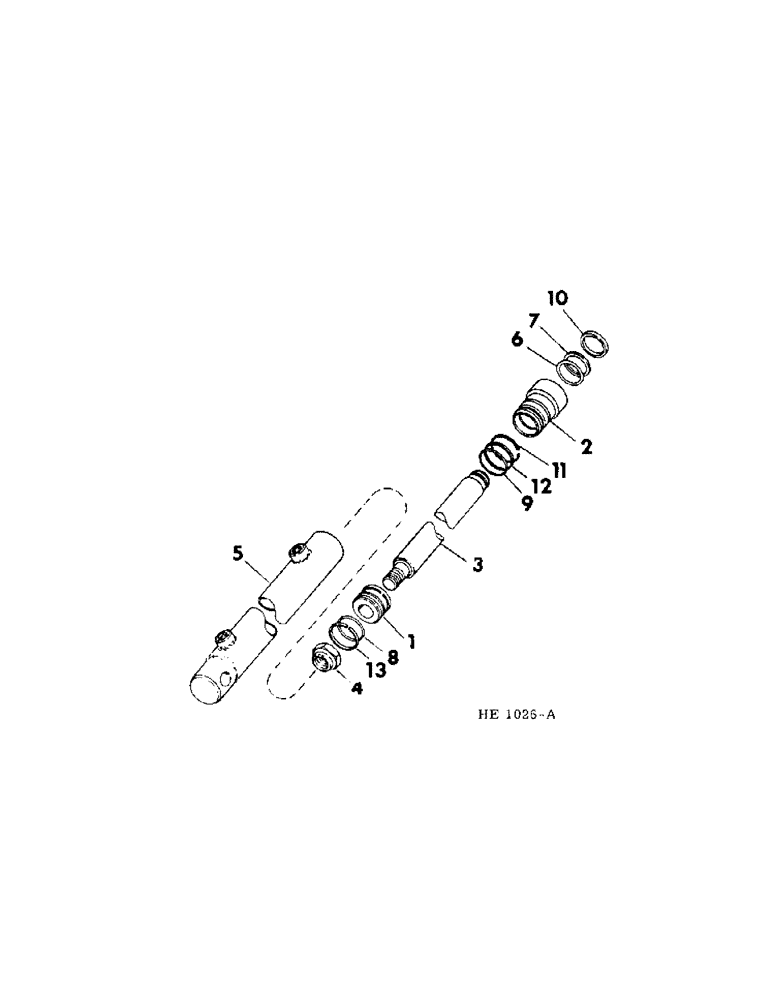

Запчасти Case IH 5000 (10-14) - HYDRAULICS, CYLINDER, HEADER LIFT MASTER (07) - HYDRAULICS

832104C91

CYLINDER

ASSY, header lift master, Consists of

1шт.

1

825537C1

PISTON

1шт.

2

825538C1

GLAND,1.62" ID x 1.876" OD x 2"

1шт.

3

825539C1

ROD

piston

1шт.

4

823323C1

NUT

1-1/8 piston rod

1шт.

5

825540C1

BODY ASSY, cylinder

1шт.

6

O-RING, 3/16 x 1-1/2 I.D., part of kit

1шт.

7

WASHER, back-up, part of kit

1шт.

8

O-RING, 3/32 x 1-13/16 I.D., part of kit

1шт.

9

O-RING, 3/32 x 1-15/16 I.D., part of kit

1шт.

10

SEAL, wiper, part of kit

1шт.

11

RING, lock, part of kit

1шт.

12

WASHER, back-up, part of kit

1шт.

13

RING, slipper, part of kit

1шт.

825541C1

KIT

seal repair, Consists of

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 3/16 x 1/2

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 3/32 x 1-13/16

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 3/32 x 1-15/16

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

832042C91

CYLINDER

ASSY, header lift slave, Consists of

1шт.
