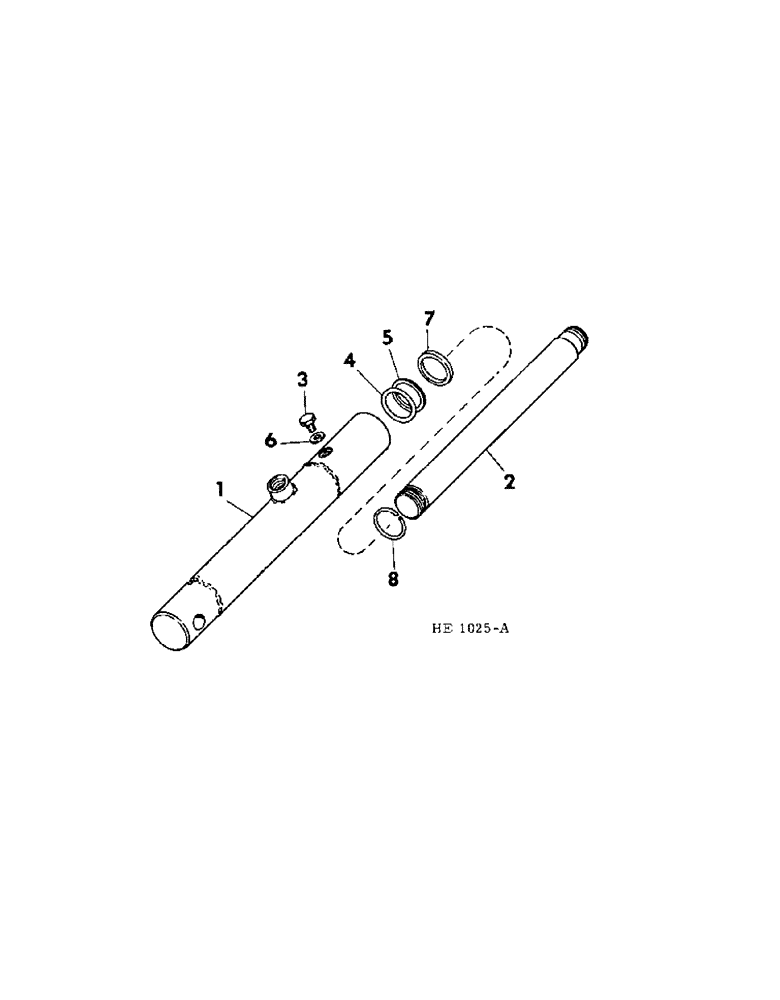

Запчасти Case IH 5000 (10-14[A]) - HYDRAULICS, CYLINDER, HEADER LIFT SLAVE (07) - HYDRAULICS

1

825534C1

BODY ASSY, cylinder

1шт.

2

825535C1

ROD

piston

1шт.

3

825536C1

FLANGE BOLT,Hex, #10 - 24 x 15/64"

SCREW, bleeder

1шт.

4

O-RING, 3/16 x 1-1/2, part of kit

1шт.

5

WASHER, back-up, part of kit

1шт.

6

WASHER, dyna-seal, part of kit

1шт.

7

SEAL, wiper, part of kit

1шт.

8

RING, lock, part of kit

1шт.

823375C3

SEAL KIT

seal repair, Consists of

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 3/16 x 1-1/2

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

RING

1шт.
