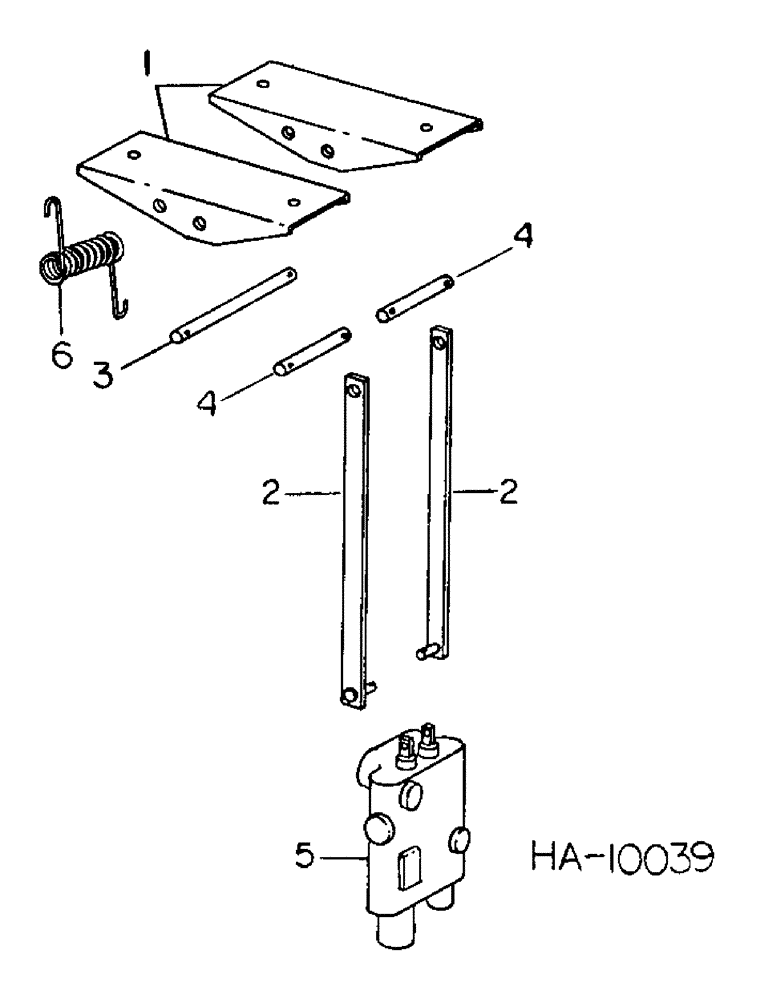

Запчасти Case IH 5000 (10-13) - HYDRAULICS, CONTROL VALVE PEDAL, FOR USE WITH DRAPER AND DUAL AUGER HEADER (07) - HYDRAULICS

1

823166C91

PEDAL

ASSY, control valve, For service order 827672C1 channel

2шт.

1

827672C2

CHANNEL

control valve pedal

2шт.

2

BAR W/O PIN, valve actuating, For service order 830737C1 bar and 1-103361 cotter

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

#10-24 x 3/4 pan-hd sltd mach, For use with/bar with/out pin

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

For use with/bar w/o pin #10-24

4шт.

2

830737C1

BAR

W/PIN, valve actuating

2шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

2шт.

3

828622C1

ROD

pedal pivot and actuating

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

4

829450C1

ROD

actuating bar

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

830297C91

VALVE

ASSY, hydraulic control, For service parts refer to hydraulic control valve

1шт.

413-432

1/4-20 x 2 hex hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

823562C1

SPRING

pedal return

1шт.
