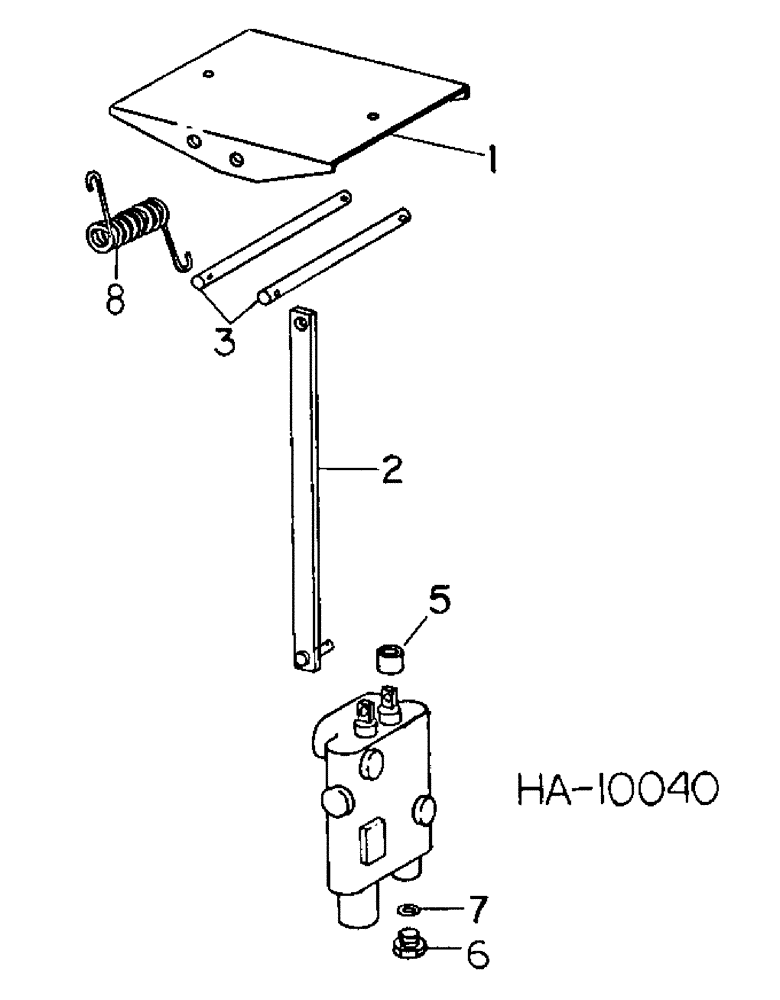

Запчасти Case IH 5000 (10-12) - HYDRAULICS, CONTROL VALVE PEDAL, FOR USE WITH SINGLE AUGER HEADER (07) - HYDRAULICS

1

823165C91

PEDAL

ASSY, control valve, For service order 1-827671C1 channel

1шт.

1

827671C2

PEDAL

CHANNEL, control valve pedal

1шт.

2

BAR W/O PIN, valve actuating, For service order 1-830737C1 bar and 1-103361 cotter

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

#10-24 x 3/4 pan-hd sltd mach, For use with/bar with/out pin

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

For use with/bar w/o pin #10-24

2шт.

2

830737C1

BAR

W/PIN, valve actuating

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

3

828622C1

ROD

pedal pivot and activating bar

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

4

830297C91

VALVE

ASSY, hydraulic control, For service parts refer to hydraulic control valve

1шт.

180044

SPRING

1/4-20 x 2 hex hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

spool lock, add wire lock

1шт.

6

9410358

PLUG

valve spool

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve spool plug

1шт.

8

823562C1

SPRING

pedal return

1шт.
