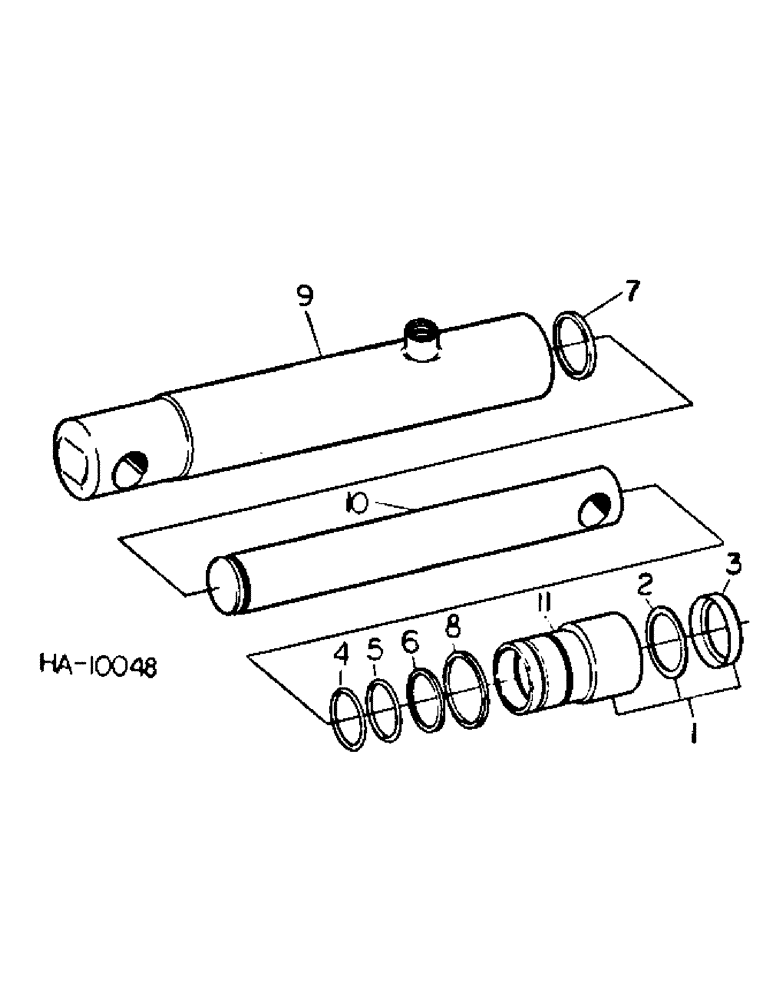

Запчасти Case IH 5000 (10-10) - HYDRAULICS, CYLINDER, HEADER LIFT, IH (07) - HYDRAULICS

123001C91

CYLINDER

ASSY, header lift

2шт.

1

57019C91

HEAD

ASSY, Includes ref no. 2, 3

1шт.

2

383770R1

WASHER

WASHER, seal felt

1шт.

3

383771R1

SEALING WASHER

WASHER, seal retainer

1шт.

4

391219R1

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

1-3/4 x 1-1-15/16 x 3/32

1шт.

5

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

1шт.

6

388969R1

BACK-UP RING

WASHER, piston rod back-up

1шт.

7

376821R1

RING, SNAP

RING, retaining

1шт.

8

388968R1

ELECTRICAL WIRE

RING, retaining

1шт.

9

123002C1

BODY

ASSY, hyd cyl

1шт.

10

123004C1

ROD

piston

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD, order 57019C91

1шт.

389270R91

KIT

cyl service, Consists of ref nos. 2, 3, 4, 5 and 6

1шт.
