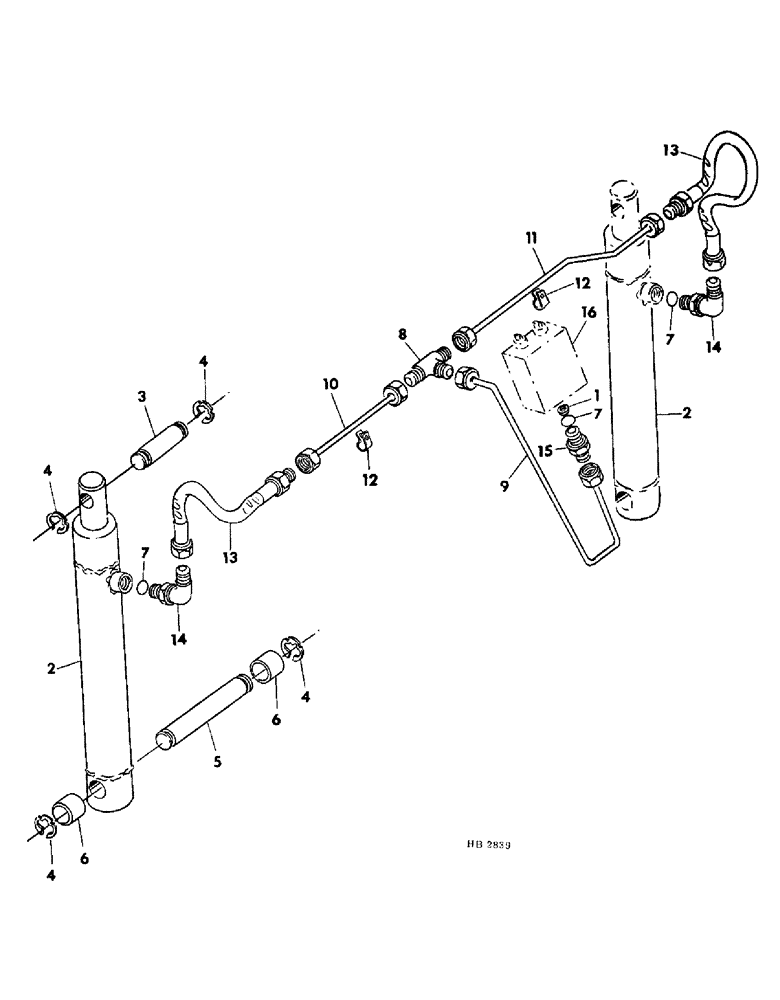

Запчасти Case IH 5000 (10-07) - HYDRAULICS, HEADER HYDRAULIC LIFT SYSTEM (07) - HYDRAULICS

1

824544C1

PLATE

orifice with .1093 dia hole

1шт.

1

596300R1

PLATE

orifice with .0935 dia hole

1шт.

2

599221R92

CYLINDER

ASSY, header lift - Cessna opt to use 2-123001C91 cylinder

2шт.

2

123001C91

CYLINDER

ASSY, header lift - IH opt to use 2-599221R92 cylinder, For service parts refer to cylinder - header lift

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

cylinder upper

2шт.

20704R1

WASHER

1.031 x 1.500 x .105 (Use as reqd)

4шт.

4

827695C1

CIRCLIP

RING, pin retaining

8шт.

5

828151C1

PIN

cylinder lower

2шт.

6

557056R1

SPACER,1" Pipe x 1"

cylinder lower

4шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

8

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

37 deg flared 3 way

1шт.

9

828344C2

TUBE

, Serial Range: valve-elbow

1шт.

10

828756C1

TUBE,0.375" OD, 11" Length

lift cylinder LH

1шт.

11

828343C1

TUBE,0.375" OD, 46, 1.5" Length

lift cylinder RH

1шт.

12

595432R1

CLAMP

tube

2шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16-18 x 1/2 taptite

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

611937R91

HOSE ASSY.

HOSE, 15-1/2 in hydraulic

2шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

adj str thd 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel

1шт.

16

830297C91

VALVE

ASSY, hydraulic control, For service parts refer to hydraulic control valve

1шт.

413-432

1/4-20 x 2 hex hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
