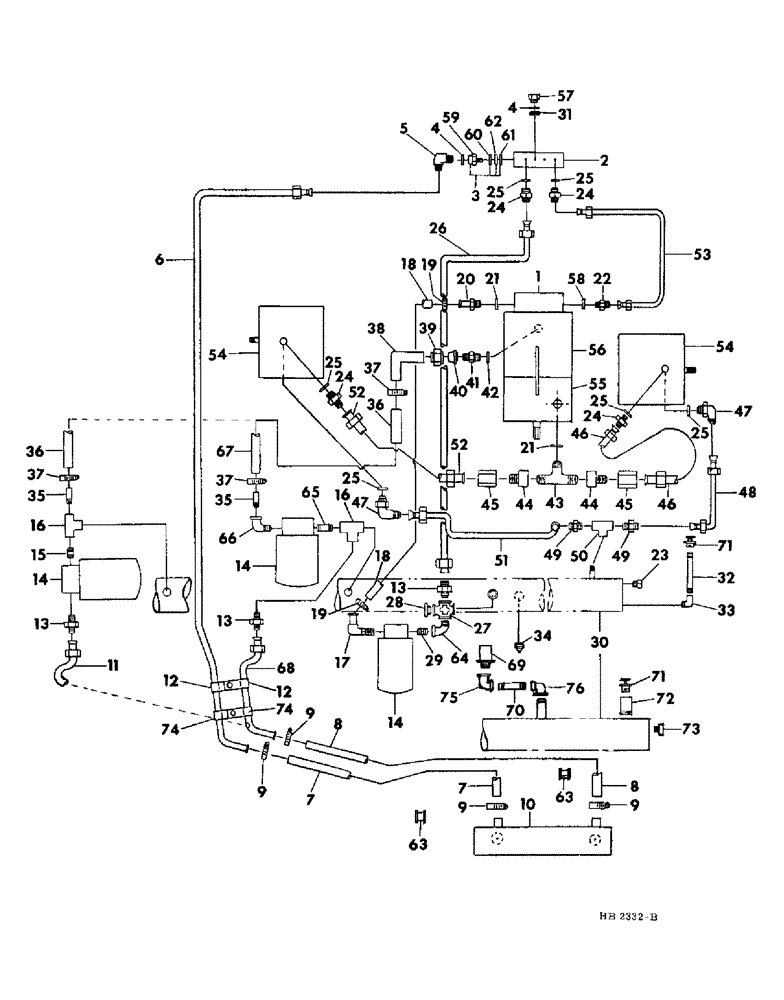

Запчасти Case IH 5000 (10-01) - HYDRAULICS, HYDRAULIC SYSTEM (07) - HYDRAULICS

1

PUMP ASSY, hydraulic auxiliary, For service parts refer to hydraulic auxiliary pump

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

830297C91

VALVE

ASSY, hydraulic control, For service order w/1-403967R1 orifice plate, For service parts refer to hydraulic control valve

1шт.

180044

SPRING

1/4-20 x 2 hex hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

598386R91

PLUG

ASSY, power beyond adaptor, Consists of

1шт.

597877R1

PLUG

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

370920R1

O-RING,1/2" ID

1шт.

598644R1

WASHER

RING

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

5

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

adj str thread 90 deg

1шт.

6

828309C1

TUBE

valve to oil cooler inlet hose

1шт.

7

HOSE, 1/2 x 20 in. length cooler inter, For service cut from bulk stock no. 73199C1

1шт.

8

HOSE, 1/2 x 32 in. length cooler outlet, For service cut from bulk stock no. 73199C1

1шт.

9

995218R1

CLAMP

hose

4шт.

10

OIL COOLER, For service parts refer to oil cooler section no. 6

1шт.

11

827807C1

TUBE, cooler hose to filter, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

12

892031C1

CLAMP

tube

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

26535R1

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR, reducer

1шт.

14

FILTER ASSY, steering and hydrostatic, For service parts refer to oil filter

2шт.

15

27849R1

NIPPLE, 3/4 x 3 pipe, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

16

NLS

NO LONGER SERVICED

TEE, 3/4 pipe

1шт.

17

386623R1

STEM

ELBOW, 3/4-90 deg pipe

1шт.

18

829159C1

HOSE, 27 in length filter to utility pump

1шт.

19

995218R1

CLAMP

hose

2шт.

20

830152C1

STEM

FITTING, hose

1шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

2шт.

22

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 5/8 x 1/2 reducer

1шт.

23

444688

PLUG

1/8-27 hex soc pipe

1шт.

23

444589

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 sq-hd pipe, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

24

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 short swivel

4шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

6шт.

26

828203C1

TUBE

valve drain

1шт.

27

144154

BRACKET

CROSS, pipe, For service order 1-144086 tee

1шт.

27

NLS

NO LONGER SERVICED

TEE, 3/4 pipe

1шт.

28

217-442

PLUG,3/4" - 14

3/4 hex pipe ZN plated, For use w/144154 cross

1шт.

29

23755R1

NIPPLE, 3/4 x 2 pipe

1шт.

30

RESERVOIR, hydraulic, part of main frame

1шт.

31

403967R1

VENT

PLATE, orifice

1шт.

32

27850R1

NIPPLE, 1 x 6 in. pipe galv pltd, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

33

127792

ELBOW, 1 in. street ZN pltd, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

34

618465R91

MAGNETIC PLUG

PLUG, 1/2 magnetic pipe

1шт.

35

830224C1

FITTING, 3/4 pipe

1шт.

36

HOSE, 25 inch filter to charge pump, For service cut from bulk stock no. 490960R1, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

37

995219R1

CLIP

CLAMP, hose

2шт.

38

830213C1

TUBE,1" OD, 5.5, 5.5" Length

hose to charge pump

1шт.

39

333755R1

NUT

tube

1шт.

40

830214C1

SLEEVE

tube nut

1шт.

41

163915C1

FITTING

hi pressure

1шт.

42

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

43

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

adj str thrd

1шт.

44

9403405

REDUCER,37 Degree, 5/8" x 3/8" Tube

FITTING, 3/4 x 1/2 reducer

2шт.

45

9403530

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, flared tube

2шт.

46

827823C1

TUBE

RH motor drain, For use on 4000 & 5500 Windrowers with variable two speed hydrostatic motors

1шт.

46

827697C1

TUBE

RH motor drain, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors

1шт.

47

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

str thread adj 90 deg

2шт.

444692

PLUG,Hex Soc, 1/4"-18

1/4-18 sq hd

1шт.

48

827822C1

TUBE

RH motor drain, For use on 4000 & 5000 Windrowers with fixed single speed hydrostatic motors

1шт.

48

827696C1

TUBE, RH motor drain, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors

1шт.

49

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR, flared tube reducer

2шт.

50

144085

TEE,1/2" NPT, Fem

1/2 pipe

1шт.

51

827824C1

TUBE

LH motor drain, For use on 4000 & 5000 Windrowers with fixed single speed hydrostatic motors

1шт.

51

827699C1

TUBE, LH motor drain, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors

1шт.

52

827825C1

TUBE

tee to LH motor drain, For use on 4000 & 5000 Windrowers with fixed single speed hydrostatic motors

1шт.

52

827698C1

TUBE, tee to LH motor drain, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors

1шт.

53

828346C2

TUBE

valve pressure

1шт.

54

MOTOR ASSY, hydrostatic fixed, For use on 4000 & 5000 Windrowers

2шт.

54

MOTOR ASSY, hydrostatic variable, For use on 5000 & 5500 Windrowers, For service parts refer to hydrostatic motor section no. 7

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltted

4шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

55

PUMP ASSY, bevel gear case to second tandum pump, For service parts refer to tandem pump section no. 7

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

56

PUMP ASSY, auxiliary pump to first tandem pump, For service parts refer to tandem pump section no. 7

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

57

9410358

PLUG

reel lift line, Not for use w/draper header, Not for use w/dual auger header

1шт.

58

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

59

597877R1

PLUG

adaptor

1шт.

60

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

61

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

62

598644R1

WASHER

back up

1шт.

63

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

oil cooler hose

2шт.

64

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4-90 deg street

1шт.

65

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 close pipe, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

66

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4-90 deg street, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

67

HOSE, 31 inch filter to charge pump, For service order from bulk stock no. 490960R1, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

68

831608C1

TUBE

cooler hose to filter, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

69

530147R1

BREATHER

FITTING, breather, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

70

219330

NIPPLE, LUBE,Nipple, 3/8" NPT x 10"

NIPPLE, 3/8 x 10 pipe, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

71

831821C1

PLUG

filter, For use on 4000 Windrower serial no. 2701 & since, For use on 5000 Windrower serial no. 1001 and since

1шт.

72

823173C1

FITTING

filler pipe, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

73

823187C1

GAUGE

oil level sight, part of main frame, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

74

892031C1

CLAMP

tube, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

74

299614C1

CLAMP

tube, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

75

119097

ELBOW,90º, 3/8" NPT

3/8-90 deg, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.

76

142365

ELBOW, 1/2 x 3/8 reducing 90 deg pipe, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

1шт.
