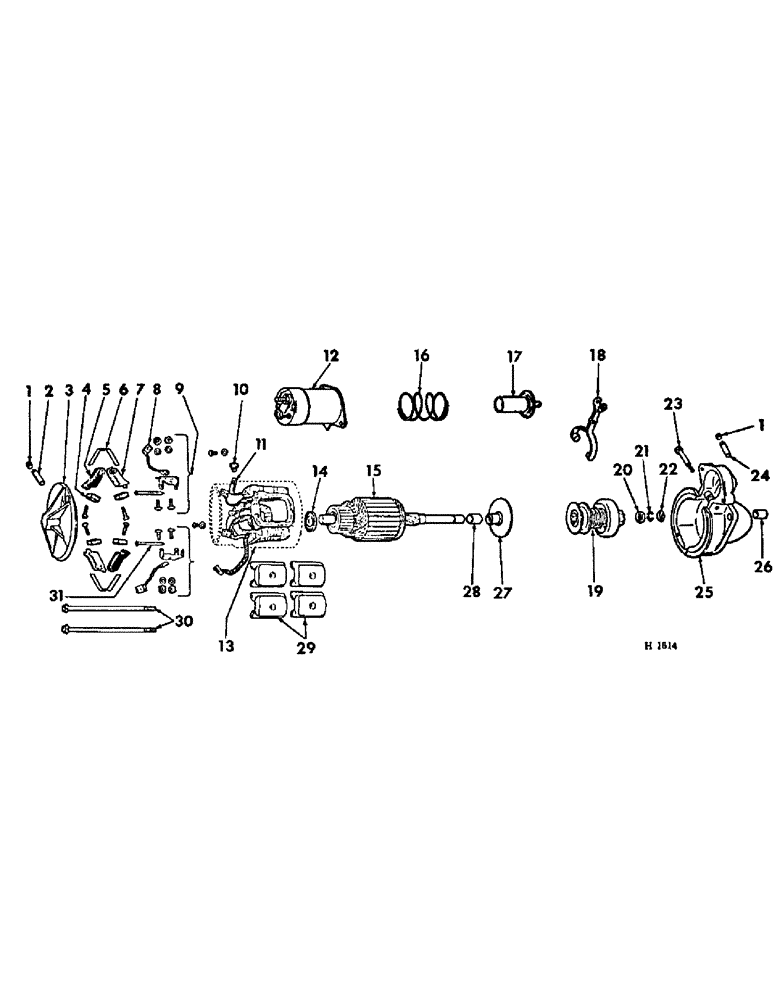

Запчасти Case IH 5000 (08-21) - ELECTRICAL, STARTING MOTOR, DELCO REMY D-239 ENGINE (06) - ELECTRICAL

1107866

MOTOR

ASSY, starting 596493R92, Consists of

1шт.

1

9427882

PLUG

commutator and drive end pipe

2шт.

2

1919851

WICK

commutator end

1шт.

3

1940385

FUNNEL

FRAME ASSY, commutator end, Includes 1-820148 bushing

1шт.

4

1946434

BRUSH, COMMUTATOR

BRUSH

4шт.

1959514

SCREW

brush insulating attach

2шт.

5

1926618

HOLDER

insulating brush

2шт.

6

1926622

VALVE SPRING

SPRING, brush

2шт.

7

1940477

HOLDER

ground brush

2шт.

274875

SHAFT

SCREW, brush ground attach

2шт.

8

1960864

BRUSH, COMMUTATOR

LEAD, brush ground

2шт.

NLS

NO LONGER SERVICED

SCREW, support attach

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

Support attach #10-24

4шт.

453535

WASHER, attaching screw lock

4шт.

9

1928015

BRACKET

PACKAGE, brush holder support, Consists of

2шт.

1960864

BRUSH, COMMUTATOR

LEAD

2шт.

1966923

PIN

2шт.

NLS

NO LONGER SERVICED

SCREW

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

453435

LOCK WASHER

WASHER

4шт.

10

1955946

GROMMET

field frame

1шт.

11

1964954

CONNECTOR, field, Serial Range: coil-switch

1шт.

9427815

SCREW, connector attach

1шт.

453468

SCREW, field attaching

1шт.

453435

LOCK WASHER

WASHER, field attaching lock

1шт.

12

1114356

SOLENOID,Starter

SWITCH, solenoid opt w/65478C1 switch

1шт.

12

65478C1

SWITCH

solenoid opt w/1114356 switch

1шт.

1952427

GASKET

switch

1шт.

132255

SCREW, switch attach Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

453468

SCREW, field lead attach

1шт.

9421423

WASHER

switch screw lock

2шт.

453435

LOCK WASHER

WASHER, field screw lock

1шт.

13

1960853

COIL

field

1шт.

14

1914842

WASHER

commutator end spacer

1шт.

15

1960866

ARMATURE

motor

1шт.

16

1958679

SPRING

plunger return

1шт.

17

1941113

PLUNGER

solenoid switch

1шт.

18

1951567

LEVER

shift

1шт.

455106

PIN

shift lever attach

1шт.

19

1971707

DRIVE

motor

1шт.

20

1928021

COLLAR

drive end pinion stop

1шт.

21

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

22

1928023

WASHER

COLLAR, drive end thrust

1шт.

23

1932197

SCREW

STUD, shift lever

1шт.

9421424

LOCK WASHER

shift lever stud lock

1шт.

9635082

NUT,5/16" - 18, Gr 5

Shift lever stud 5/16"-18, G5

1шт.

9428056

NUT, lock, For use on later production w/1970988 sealing washer

1шт.

1970988

WASHER

sealing, For use on later production w/9428056 lock nut

1шт.

24

1916439

WICK

drive end

1шт.

25

1966914

HOUSING

drive end, Includes 1-1862383 bushing

1шт.

809593

PIN

dowel

1шт.

26

1862383

BUSHING

drive end housing

1шт.

27

820149

PLATE

BEARING, center plate

1шт.

1914580

SCREW

center brg attch

2шт.

1962276

WASHER

center brg attch lock

2шт.

28

1938596

BUSHING

center bearing .500

1шт.

28

820148

BUSHING

center bearing .719

1шт.

29

1887021

SHOE, pole

4шт.

1913960

SCREW

shoe pole

4шт.

30

1960908

BOLT (SPREADER)

BOLT, motor through

2шт.

31

1966923

PIN

brush holder

2шт.
