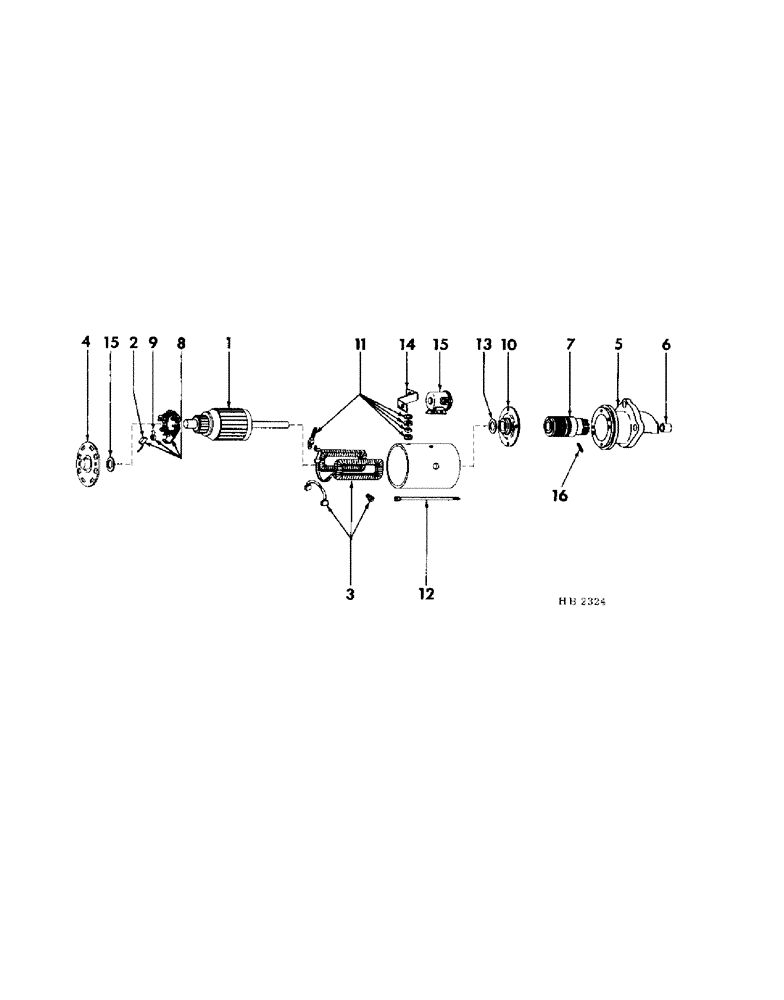

Запчасти Case IH 5000 (08-20) - ELECTRICAL, STARTING MOTOR, PRESTOLITE HB-225 GAS ENGINE (06) - ELECTRICAL

830467C91

MOTOR

ASSY, starting 12 volt MHA-7014, Consists of all parts listed

1шт.

1

830477C1

ARMATURE

1шт.

2

927988C1

BRUSH SET, service

1шт.

3

830479C1

PACKAGE

field oil, Includes brush and 4 screw

1шт.

4

927982C1

HEAD

ASSY, commutator end

1шт.

5

830484C91

HOUSING ASSY, pinion, Includes 830485C1 bushing

1шт.

6

830485C1

BUSHING

BEARING, pinion housing

1шт.

7

830483C1

DRIVE

ASSY, bendix

1шт.

8

927983C1

PLATE

ASSY, brush, Includes 1-927735C1 brush spring set & 2 brush

1шт.

9

927735C1

SPRING

SET, brush spring

1шт.

10

830482C1

BEARING ASSY

ASSY, intermediate

1шт.

11

830478C1

PACKAGE, terminal stud

1шт.

12

927726C1

PACKAGE

through bolt

1шт.

13

830476C1

PACKAGE

thrust bolt

1шт.

14

830480C1

CONNECTOR, Serial Range: switch-motor

1шт.

15

830481C1

SWITCH

SOLENOID, starting switch

1шт.

16

71671C1

PACKAGE, bendix pin, Includes 25 pins

1шт.
