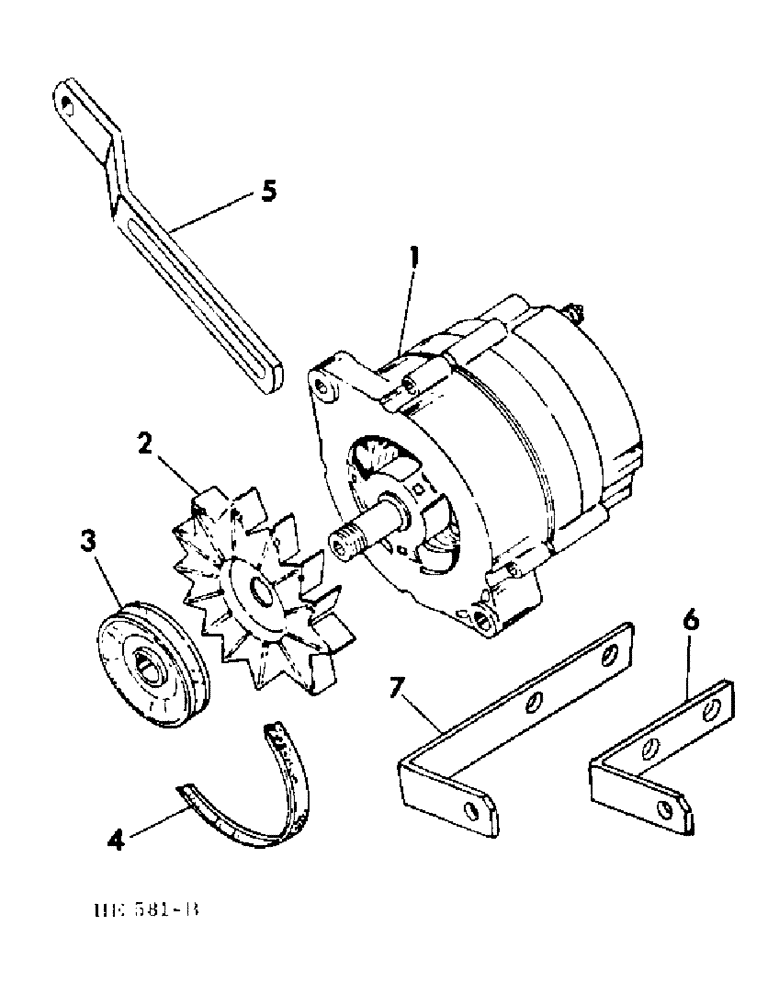

Запчасти Case IH 5000 (08-19) - ELECTRICAL, ALTERNATOR AND MOUNTING HB-225 GAS ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS (06) - ELECTRICAL

1

1100585

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 66585C91, For service order 1-102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1102921

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 130968C91, For service order 1-102936 alternator assy, For service parts refer to alternator assy

1шт.

1

87297244

REMAN-ALTERNATOR

Reman For New P/N 1102921

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1102936

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 500163C91, For service order 1-103174 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1103174

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp, Refer to alternator assy

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

561690C1

NUT, M6 x 1 hex

1шт.

225-14112

NUT,#12-24

#12-24 hex

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

800612

FAN

FAN, alternator pulley

1шт.

3

1961261

PULLEY

PULLEY, alternator 384956R1

1шт.

4

830122C1

BELT,35.50" L

Alternator Drive

1шт.

5

830107C1

SPARE PART STRAP, alternator adj

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16-18 hex-hd

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8-16 x 1-1/2 hex-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .065

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

830105C1

SPARE PART ANGLE, alternator mounting

1шт.

7

830106C1

SPARE PART SUPPORT, alternator mounting

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8-16 x 1-1/2 hex-hd

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, 3/8-16 x 3 hex-hd

1шт.

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 MM hex-hd, For use w/1103174

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
