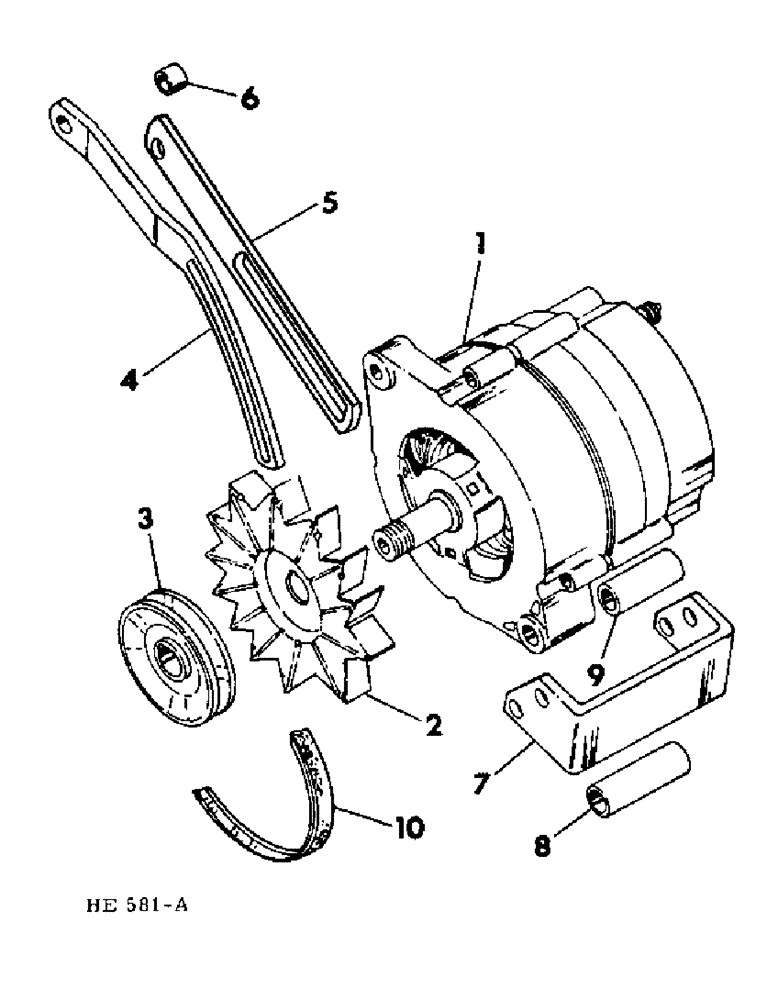

Запчасти Case IH 5000 (08-18) - ELECTRICAL, ALTERNATOR AND MOUNTING D-239 ENGINE, FOR USE ON 5000 AND 5500 WINDROWER (06) - ELECTRICAL

1

1100585

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 66585C91, For service order 1-1102936 alternator assy, For service parts refer to alternator assy

1шт.

1

1102921

ALTERNATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 130968C91, For service order 1-102936 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

87297244

REMAN-ALTERNATOR

Reman For New P/N 1102921

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297230

REMAN-ALTERNATOR

Reman For New P/N 1102921

1шт.

1

87297231

CORE-ALTERNATOR

Return Part Number, 12V 65AMP

1шт.

1

1102936

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 500163C91, For service order 1-103174 alternator assy, For service parts, Serial Range: refer-alternator

1шт.

1

1103174

GENERATOR

ALTERNATOR ASSY, AC 12 volt 61 amp 571231C91, For service parts refer to alternator assy

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1103174

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

571690C1

NUT, M6 x 1 hex

1шт.

121743

CHAIN,#12 - 24

#12-24 hex

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

2

800612

FAN

FAN, alternator pulley

1шт.

3

PULLEY, 3 inch dia alternator pulley, For service order 1-1946716 pulley and 1-280210C1 belt

1шт.

3

1946716

PULLEY

PULLEY, 4-1/2 inch dia alternator pulley 378349R1, For use with 280210C2 belt

1шт.

4

850451C1

ARM

BRACE, alternator adjusting, For service order 1-831674C1 bar, 1-674587R1 bolt, 1-120376 nut and 1-20893R1 washer

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16-18 x 3/4 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

WASHER, .344 x 1.000 x .054

1шт.

5

831674C1

BAR

BAR, alternator adjusting brace

1шт.

674587R1

SPARE PART BOLT, 5/16-18 x 1-1/2 spec hex-hd, Not for use w/1103174

1шт.

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, MB x 30 MM hex-hd, For use w/1103174

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

20893R1

WASHER

WASHER, .344 x 1.000 x .105

1шт.

134238R1

WASHER

WASHER, .344 x 1.000 x .054

4шт.

6

86224H

SPACER,1/4" Pipe x 3/8"

SPACER, , Adj arm 1/4" Pipe x 3/8"

1шт.

7

596491R1

CHANNEL

CHANNEL, alternator support

1шт.

8

601637R1

SPACER,3/8" Pipe x 1 15/16"

SPACER, channel mtg

1шт.

9

512256R1

SPACER

SPACER, alternator pivot

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8-16 x 4-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

BELT, fan used w/3 inch dia alternator pulley, For service order 1-1946716 pulley and 1-280210C2 belt

1шт.

10

280210C2

BELT,53.50" L

Fan used w/4-1/2 inch dia alternator pulley

1шт.
