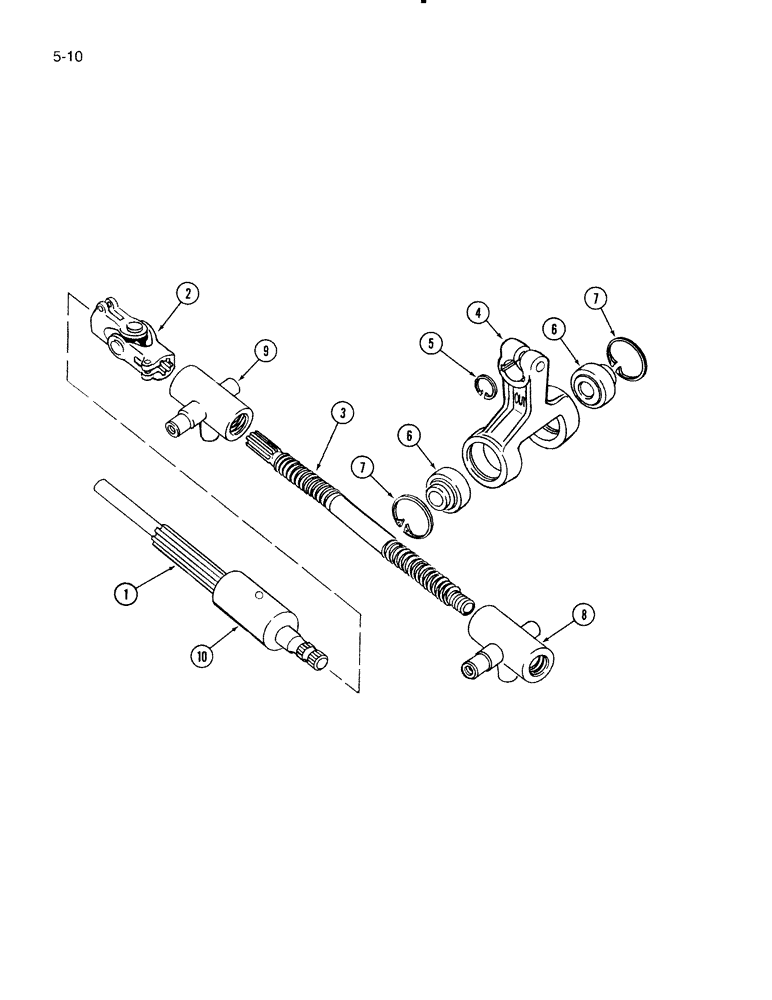

Запчасти Case IH 5000 (5-10) - STEERING AND SPEED CONTROL LINKAGE (05) - STEERING

1

823948C1

SHAFT

- steering (Used with welded steering gear assembly built, Serial Range: prior-1982)

1шт.

1

826740C1

SHAFT

- steering (Used with cast steering gear assembly built 1982 and after)

1шт.

2

REF

INSTRUCTION

JOINT ASSEMBLY - universal, steering (See Page 5-13)

1шт.

25801R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

- hex, 7/16 NF x 2 inch, Grade 8 (Used with 824710C91)

2шт.

21086R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

B0LT - hex, 7/16 NF x 1-3/4 inch, Grade 8 (Used with 626056C91)

2шт.

9413215

LOCK NUT,7/16"-20, GC

NUT - hex lock, 7/16 inch NF

2шт.

3

823339C1

SHAFT

- steering and speed control

1шт.

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.

4

823461C1

ARM

- steering and speed control

2шт.

218211

DRIVING SPROCKET

- Woodruff, 1/4 x 3/4 inch

2шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

6

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - control arm pivot

4шт.

7

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

4шт.

8

823459C1

PIVOT

- steering and speed control LH thread

1шт.

9

823460C1

PIVOT

- steering and speed control RH thread

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - 1/8 inch PTF, 90 degree short lube

2шт.

10

831506C1

HUB

- interlock pin

1шт.
