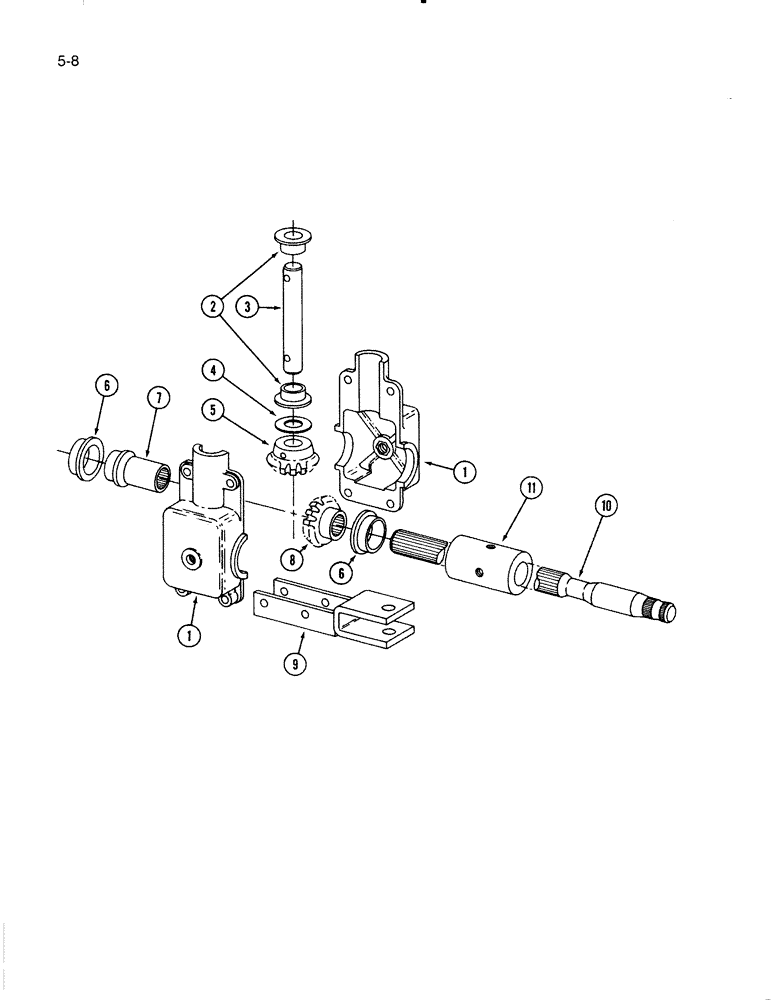

Запчасти Case IH 5000 (5-08) - STEERING GEAR ASSEMBLY (05) - STEERING

1

826738C1

HOUSING

- gear

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

180087

SPRING

- hex, 5/16 NC x 2 inch

2шт.

425-105

NUT,5/16"-18, G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

830053C1

BUSHING

- steering pin

2шт.

3

830058C1

PIN

- steering lower

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

4

852309C1

SHIM

- bevel gear

1шт.

5

830044C1

GEAR

- bevel, steering

1шт.

6

830054C1

BUSHING

- steering shaft

2шт.

7

826739C1

SPACER

- bevel gear

1шт.

8

830043C1

GEAR

- bevel, steering

1шт.

9

826921C1

ANCHOR

ASSEMBLY - interlock pin

1шт.

10

826740C1

SHAFT

- steering

1шт.

10

831506C1

HUB

- interlock pin

1шт.
