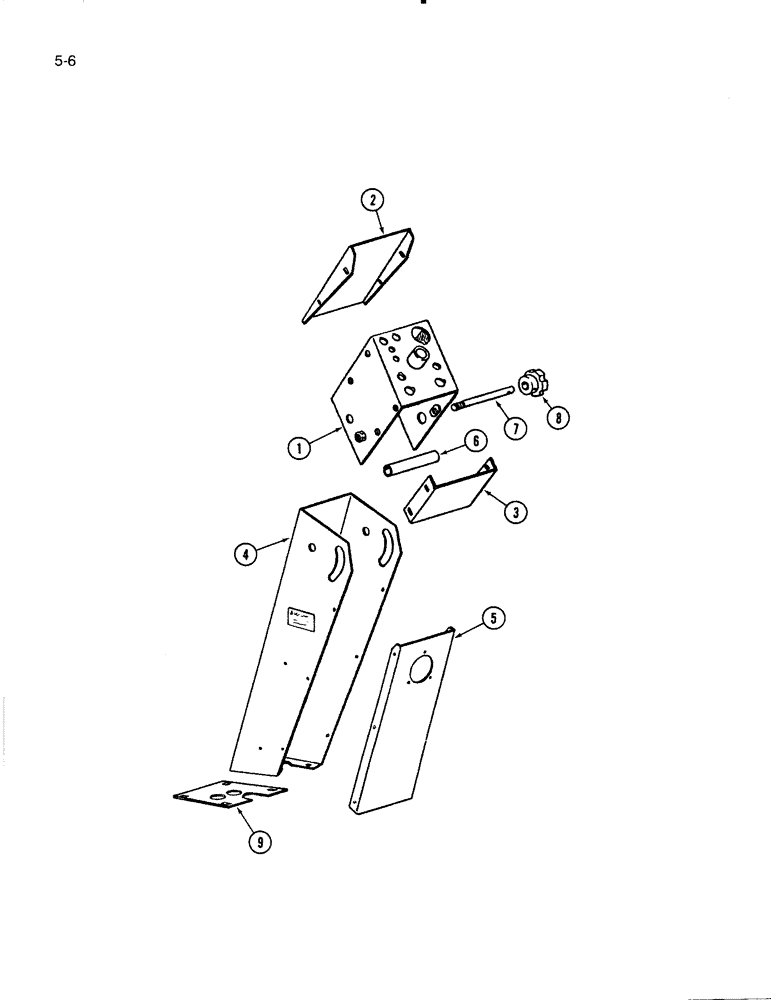

Запчасти Case IH 5000 (5-06) - STEERING PEDESTAL, 5000 WINDROWER (05) - STEERING

1

823716C91

PANEL

ASSEMBLY - instrument

1шт.

823471C1

PRODUCT GRAPHIC

DECAL - warning

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

2

829247C1

COVER

- instrument panel top

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

6шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

8шт.

3

829484C1

CHANNEL

- instrument panel cover lower

1шт.

4

823174C91

PEDESTAL

- steering

1шт.

830842C2

PRODUCT GRAPHIC

DECAL - warning

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

4шт.

425-105

NUT,5/16"-18, G5

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

829244C1

COVER ASSEMBLY - pedestal

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

829488C1

PIPE - instrument panel spacer

1шт.

7

824972C1

STUD

- instrument panel adjusting (Replaces 829495C1 also order 128289C1 and 591184R1)

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

8

128289C1

KNOB

- instrument panel adjusting (Replaces 829491C1 also order 824972C1 and 591184R1)

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, , use with 829491C1 3/16" x 1 1/8", Slotted

1шт.

364436R1

PIN,3/16" x 1", Coiled

use with 128289C1 3/16" x 1", Coiled

1шт.

9

830806C1

COVER

- steering rod

1шт.
