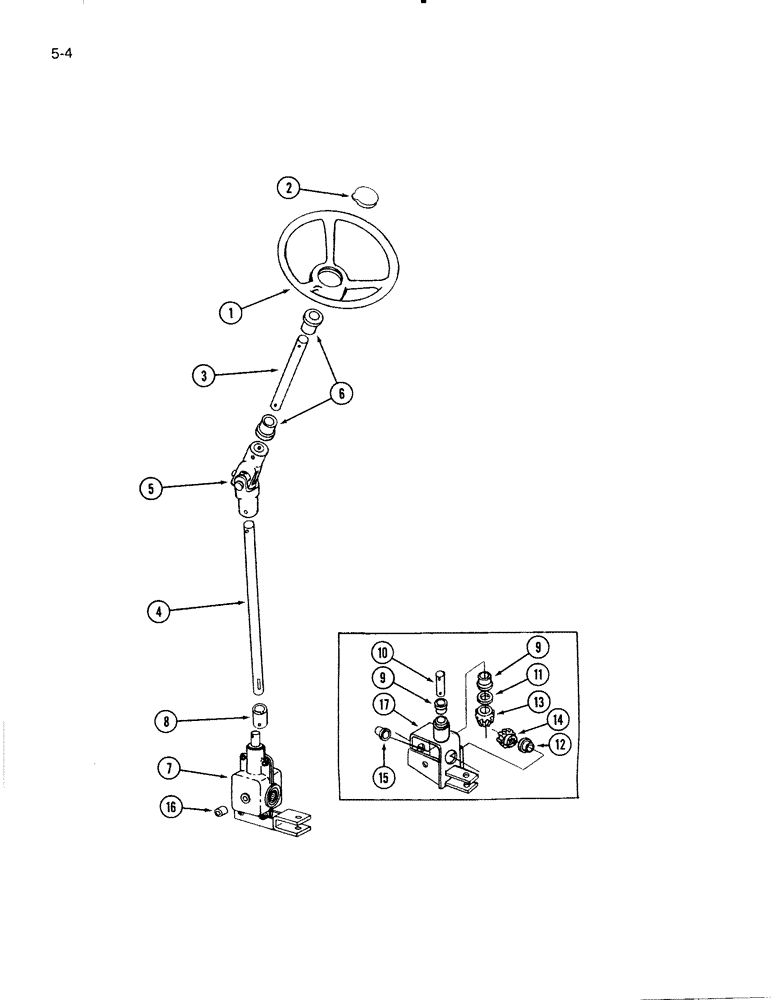

Запчасти Case IH 5000 (5-04) - STEERING CONTROLS, 5000 WINDROWER (05) - STEERING

1

828982C1

WHEEL

- steering

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

- coiled spring, 1/4 x 1-1/2 inch

1шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

2

828734C1

RETAINER

- steering wheel cap

1шт.

3

829493C1

PIN

ROD - upper steering

1шт.

4

829494C1

SHAFT

- steering

1шт.

5

829492C92

JOINT

ASSEMBLY - universal, steering

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

6

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

- steering rod

2шт.

7

824690C91

GEAR-SET

GEAR ASSEMBLY - steering, cast type (Replaces 831740C91 welded type, also order steering shaft 826740C1)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

8

830057C2

HUB

- shaft coupling

1шт.

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

9

830053C1

BUSHING

- steering rod lower

1шт.

10

830058C1

PIN

- steering lower

1шт.

11

852309C1

SHIM

- bevel gear

1шт.

12

830054C1

BUSHING

- steering shaft

1шт.

13

830044C1

GEAR

- bevel, steering

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

14

830043C1

GEAR

- bevel, steering

1шт.

15

823168C1

BUSHING

- steering support front

1шт.

16

561227R1

SPACER - pipe

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - steering gear welded type (Order steering gear assembly 824690C91 and steering shaft 826740C1)

1шт.
