Запчасти Case IH 5000 (4-48) - CLIPS, GROMMETS AND STRAPS (04) - ELECTRICAL SYSTEMS

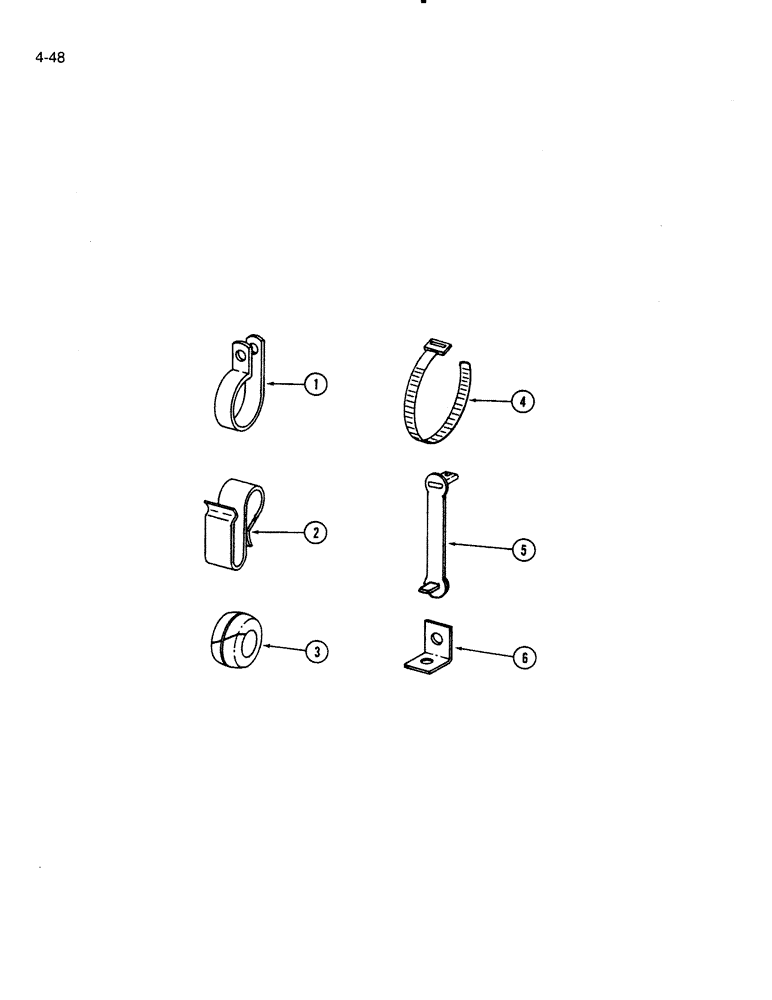

Схема запчастей Case IH 5000 - (4-48) - CLIPS, GROMMETS AND STRAPS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

129083R1

CLAMP

CLIP - insulated, battery cable

1шт.

1

299403C1

CLAMP

- insulated, rear warning light cable

1шт.

1

134053H

CLIP - uninsulated, instrument panel harness and front wiring harness

1шт.

1

102869R1

CLIP

- insulated, alternator cable

1шт.

1

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

- insulated, rear harness, battery cable and alternator cable

1шт.

1

117762H

CLIP,3/16", Insul, 3/8" Bolt

- insulated, air conditioning compressor clutch cable and head light harness

1шт.

2

119702

SWIVEL CONNECTION

CLIP - uninsulated, hazard light harness, fuel tank to gauge cable and head light harness

1шт.

3

117957

GROMMET,1/4" ID x 5/8" x .062"

- uncut, 1/4 x 5/8 inch, air conditioning condenser thermostat wire and head light harness

1шт.

3

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

- diagonal cut, 1/4 x 5/8 inch, fuel gauge cable

1шт.

3

117960

GROMMET,5/16" ID x .719" x .188"

- uncut, 5/16 x 23/32 inch, rear light cable

1шт.

3

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- diagonal cut, 3/8 x 27/32 inch, warning light harness and blower cable

1шт.

3

117974

GROMMET - diagonal cut, 3/8 x 11/16 inch, blower cable

1шт.

3

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

- diagonal cut, 7/8 x 1-9/16 inch, hazard light harness, head light harness and front wiring harness

1шт.

3

823167C1

GROMMET

- cab power supply harness

1шт.

3

823618C1

GROMMET

- uncut, 1/8 x 3/4 inch, head light harness

1шт.

3

117736C1

GROMMET

- diagonal cut, 3/16 x 7/8 inch, warning light harness

1шт.

3

832320C1

GROMMET

- diagonal cut, 1 x 1-3/4 inch, battery ground cable

1шт.

3

187954

GROMMET,1" ID x 1 3/4" x .062"

- uncut, 1 x 1-3/4 inch, battery cable

1шт.

3

668259C1

GROMMET,7/8" ID x 1 1/4" Groove Dia, Str Cut

- diagonal cut, 1-1/4 x 1-5/8 inch, combination light cable

1шт.

4

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining, warning light harness

1шт.

4

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

5

544359R1

CLIP

- retaining, rear harness, flasher harness, air conditioning condenser thermostat cable and hazard light harness

1шт.

5

829582C1

CLIP

- retaining, front light harness and tail light harness

1шт.

6

828903C3

ANGLE

- mounting support, battery to solenoid cable (5000 only)

1шт.

Выбрано товаров: 24
