Запчасти Case IH 5000 (4-46) - HEADLIGHT ASSEMBLY, HOBBS (04) - ELECTRICAL SYSTEMS

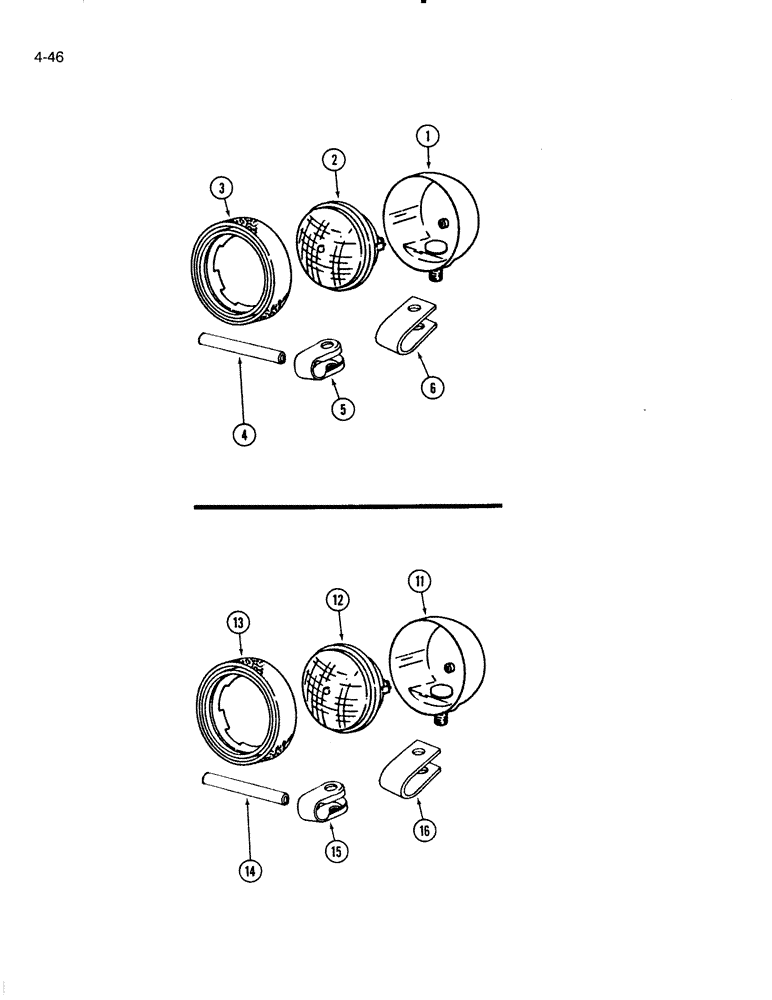

Схема запчастей Case IH 5000 - (4-46) - HEADLIGHT ASSEMBLY, HOBBS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

92082C91

LAMP

LIGHT ASSEMBLY - headlight (Replaces 599286R91)

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - headlight (Order 92082C91)

1шт.

2

A42294

SEALED BEAM UNIT

LAMP - headlight (Replaces 390756R91)

1шт.

3

A25213

RETAINER

- shocproof

1шт.

4

463580R1

SPACER,1/2" Pipe x 4.109"

- mounting

2шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

350920R1

CLAMP

- headlight mounting (With cab)

2шт.

6

828763C1

CLAMP

- headlight mounting (Without cab)

2шт.

92119C91

LIGHT ASSY.

LIGHT ASSEMBLY - headlight (Replaces 823029C91)

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - headlight (Order 92119C91) HEADLIGHT ASSEMBLY DOMINION

1шт.

12

A42294

SEALED BEAM UNIT

LAMP - headlight (Replaces 390756R91) HEADLIGHT ASSEMBLY DOMINION

1шт.

13

823031C1

RETAINER

- lamp HEADLIGHT ASSEMBLY DOMINION

1шт.

14

463580R1

SPACER,1/2" Pipe x 4.109"

- mounting HEADLIGHT ASSEMBLY DOMINION

2шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch HEADLIGHT ASSEMBLY DOMINION

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Headlight Assy Dominion 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Headlight assembly dominion 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch HEADLIGHT ASSEMBLY DOMINION

2шт.

15

350920R1

CLAMP

- headlight mounting (With cab) HEADLIGHT ASSEMBLY DOMINION

2шт.

16

828763C1

CLAMP

- headlight mounting (Without cab) HEADLIGHT ASSEMBLY DOMINION

2шт.

Выбрано товаров: 22
