Запчасти Case IH 5000 (4-44) - LIGHT ASSEMBLY, COMBINATION TAIL AND STOP (04) - ELECTRICAL SYSTEMS

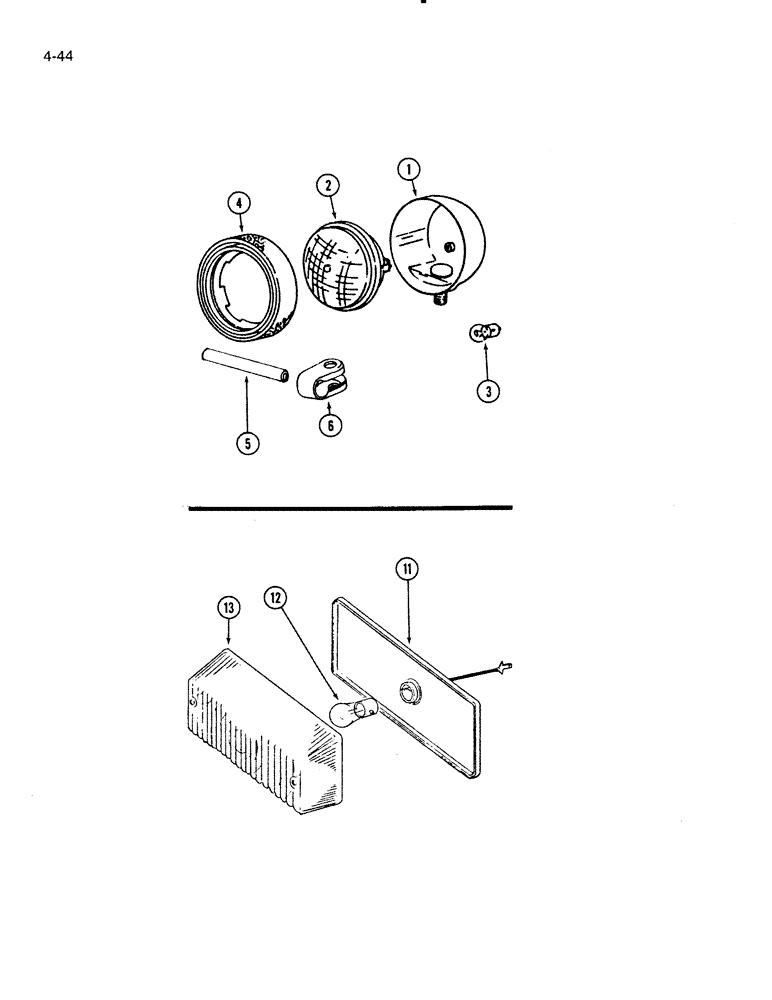

Схема запчастей Case IH 5000 - (4-44) - LIGHT ASSEMBLY, COMBINATION TAIL AND STOP (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

387729R92

LIGHT ASSY.

LIGHT ASSEMBLY - combination tail and stop

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - light (Order 387729R92)

1шт.

2

80627C1

LIGHT ASSY.

LAMP - combination with bulb (Replaces 371461R92)

1шт.

3

33686

BULB

- light No. 1141

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

- light NO.1003 (Used with 371461R92)

1шт.

4

A25213

RETAINER

- shockproof

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

- light mounting

1шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

6

350920R1

CLAMP

- light

1шт.

130882C91

LAMP

LAMP ASSEMBLY - warning

4шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - light (Order 130882C91) LIGHT ASSEMBLY FLASHING WARNING

1шт.

12

A41264

BULB,#1156, 12V

Lamp , Light Assembly Flashing Warning #1156, 12V

1шт.

13

130883C1

LENS

- warning lamp LIGHT ASSEMBLY FLASHING WARNING

1шт.

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan head, No. 10 NC x 2-1/4 inch LIGHT ASSEMBLY FLASHING WARNING

8шт.

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC LIGHT ASSEMBLY FLASHING WARNING

8шт.

Выбрано товаров: 18
