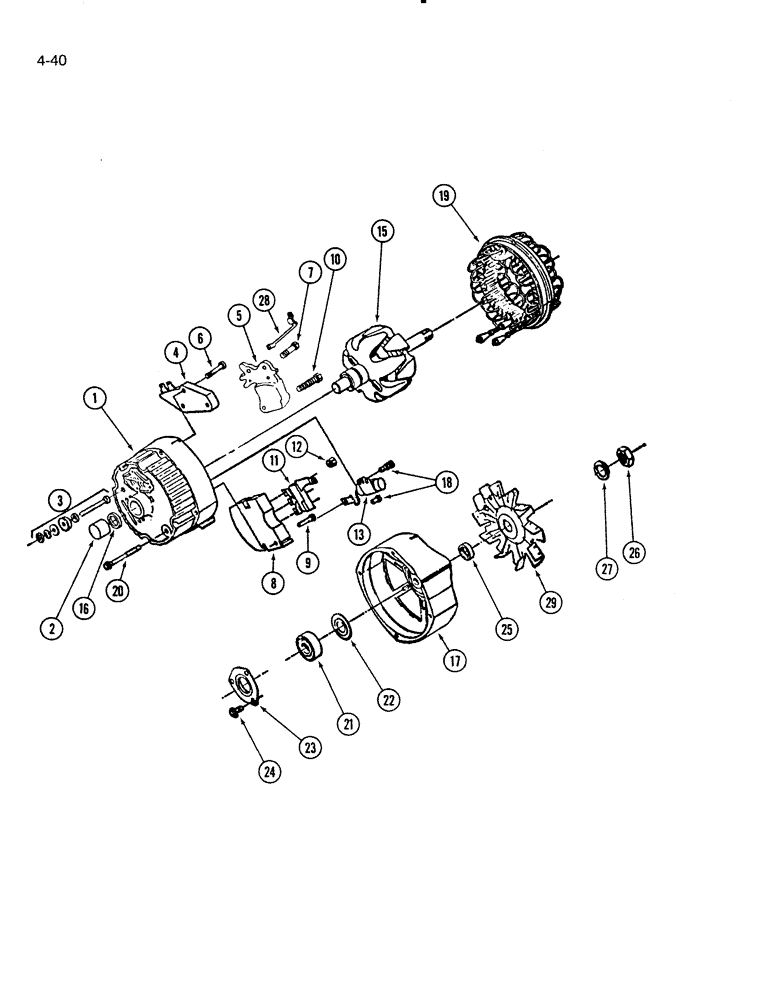

Запчасти Case IH 5000 (4-40) - ALTERNATOR, METRIC HARDWARE (04) - ELECTRICAL SYSTEMS

1105170

GENERATOR

ALTERNATOR ASSEMBLY - electrical

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

87297246

REMAN-ALTERNATOR

Reman for New PN 1105170

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number 12 VOLT, 63 AMP Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN 1105170

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN 1105170

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12 VOLT, 65 AMP Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 VOLT, 65 AMP Alternator

1шт.

1

1975718

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

2

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - slip ring end

1шт.

3

A47597

TERMINAL CONNECTOR

KIT - battery terminal

1шт.

4

A45213

REGULATOR

REGULATOR - voltage

1шт.

5

A47042

HOLDER

HOLDER ASSEMBLY - brush with brushes

1шт.

6

1894586

SCREW

SCREW - regulator retaining

1шт.

7

1876681

SCREW

SCREW - brush holder retaining

2шт.

8

585630C1

RECTIFIER

SUPPORT - rectifier

1шт.

9

1984458

SCREW

SCREW - rectifier support retaining

1шт.

10

1974020

SCREW

SCREW - brush holder pivot

1шт.

11

A48339

DIODE

RECTIFIER - diode trio

1шт.

12

225-14108

NUT,#8-32

NUT - rectifier bridge

3шт.

13

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

14

1869573

BRACKET

BRACKET - capacitor

1шт.

15

A45391

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

16

1961323

SEAL

SEAL - oil

1шт.

17

1976808

FRAME

FRAME ASSEMBLY - drive end

1шт.

18

1851612

SCREW

SCREW - capacitor bracket retaining

2шт.

19

585629C1

STATOR

STATOR ASSEMBLY - alternator

1шт.

20

1956975

BOLT

BOLT - housing retaining

4шт.

21

1974861

BALL BEARING

BEARING - drive end

1шт.

22

A45232

WASHER

SLINGER - grease

1шт.

23

1971993

PLATE

RETAINER - bearing

1шт.

24

1975736

SCREW

SCREW - retainer

3шт.

25

A49733

COLLAR

COLLAR - bearing

1шт.

26

A25546

NUT

NUT - drive end

1шт.

27

1941978

WASHER

WASHER - drive end

1шт.

28

1894568

ELEC CONNECTOR

TERMINAL - relay

1шт.

29

221425R1

FAN

FAN - alternator

1шт.
