Запчасти Case IH 5000 (4-32) - STARTER ASSEMBLY, D-239 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

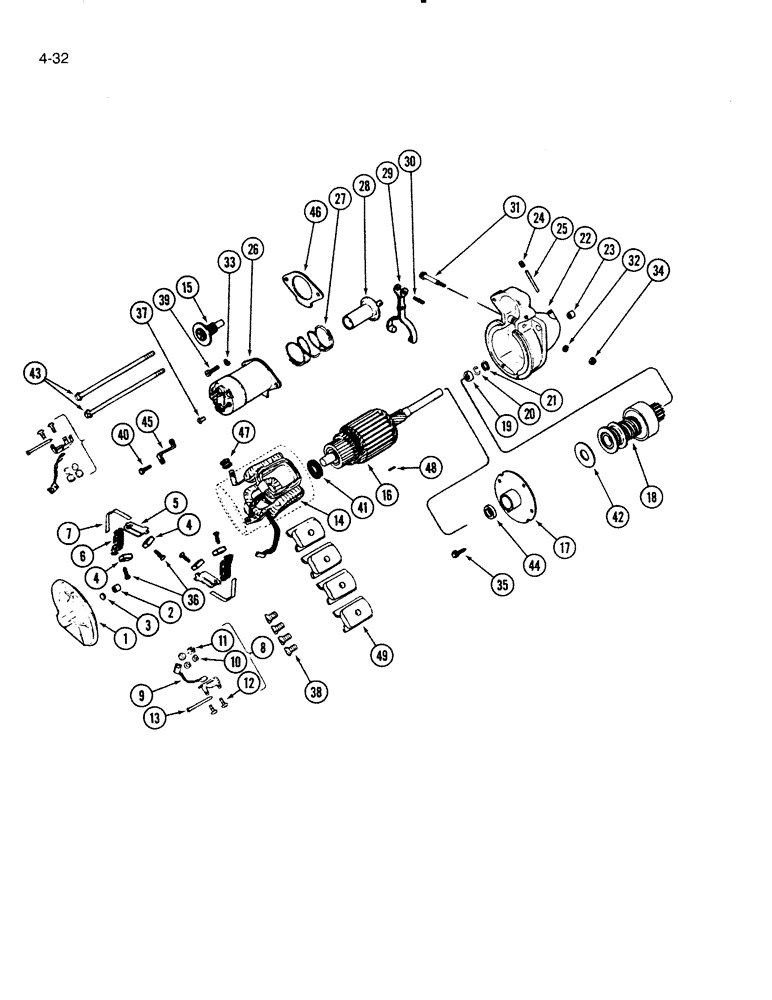

Схема запчастей Case IH 5000 - (4-32) - STARTER ASSEMBLY, D-239 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1998342

HYDRAULIC SYSTEM

ASSEMBLY - starter (Replaces 1107866)

1шт.

1

A49447

FUNNEL

FRAME - commutator end

1шт.

2

1891927

BUSHING

- commutator end

1шт.

3

A47133

WICK

- commutator end

1шт.

4

A49479

BRUSH

- commutator

4шт.

5

1873695

HOLDER

- brush ground

2шт.

6

800091

HOLDER

- brush insulator

2шт.

7

1986019

SPRING

- brush

2шт.

8

1876458

SUPPORT

KIT - brush holder support

2шт.

9

1876361

CABLE

LEAD - ground

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

11

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

12

9439734

SCREW

- brush holder attaching

4шт.

13

A41983

PIN

- brush holder

2шт.

14

A49481

COIL

ASSEMBLY - field

1шт.

15

1978337

CONTACT

- switch

1шт.

16

108054A1

ARMATURE

- motor

1шт.

17

A49446

BEARING ASSY

PLATE - center bearing

1шт.

18

A47178

DRIVE

ASSEMBLY - motor

1шт.

19

R15049

COLLAR

- stop

1шт.

20

1928022

SNAP RING

RING - retaining

1шт.

21

1964410

COLLAR

- thrust

1шт.

22

1986826

HOUSING

- drive

1шт.

1862383

BUSHING

- drive end

1шт.

24

1986467

PLUG

- drive end

1шт.

25

A48716

WICK

- drive end

1шт.

26

A49480

SWITCH

- solenoid

1шт.

27

A48717

SPRING

- plunger

1шт.

28

A49475

PLUNGER

- solenoid

1шт.

29

1951567

LEVER

- shift

1шт.

30

A49453

PIN

- lever

1шт.

31

1932197

SCREW

STUD - lever

1шт.

32

1942424

WASHER

- shift lever stud

1шт.

33

1942423

WASHER

- lock

2шт.

34

425-105

NUT,5/16"-18, G5

Shift lever stud 5/16"-18, G5

1шт.

35

A49476

CAPTIVE WASHER SCREW,Spcl, Hex, #10 - 32 x 0.56"

SCREW - center bearing

2шт.

36

274875

SHAFT

SCREW - brush ground retaining

2шт.

36

1987070

BOLT

SCREW - brush insulating retaining

2шт.

37

9439738

SCREW

-, Serial Range: connector-switch

1шт.

38

1968396

SCREW

- pole shoe

4шт.

39

132255

SCREW - solenoid attaching Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

40

9427815

SCREW - connector attaching

1шт.

41

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake

1шт.

42

1986470

WASHER

- drive

1шт.

43

1893453

BOLT

- through

2шт.

44

A47544

BUSHING

Center bearing

1шт.

45

1876358

CONNECTING ROD

CONNECTOR - field, Serial Range: coil-switch

1шт.

46

1952427

GASKET

- switch

1шт.

47

A41980

GROMMET

- field frame

1шт.

48

1976940

PIN

- dowel

1шт.

49

1887021

SHOE - pole

4шт.

Выбрано товаров: 51
