Запчасти Case IH 5000 (4-30) - STARTER ASSEMBLY, D-239 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

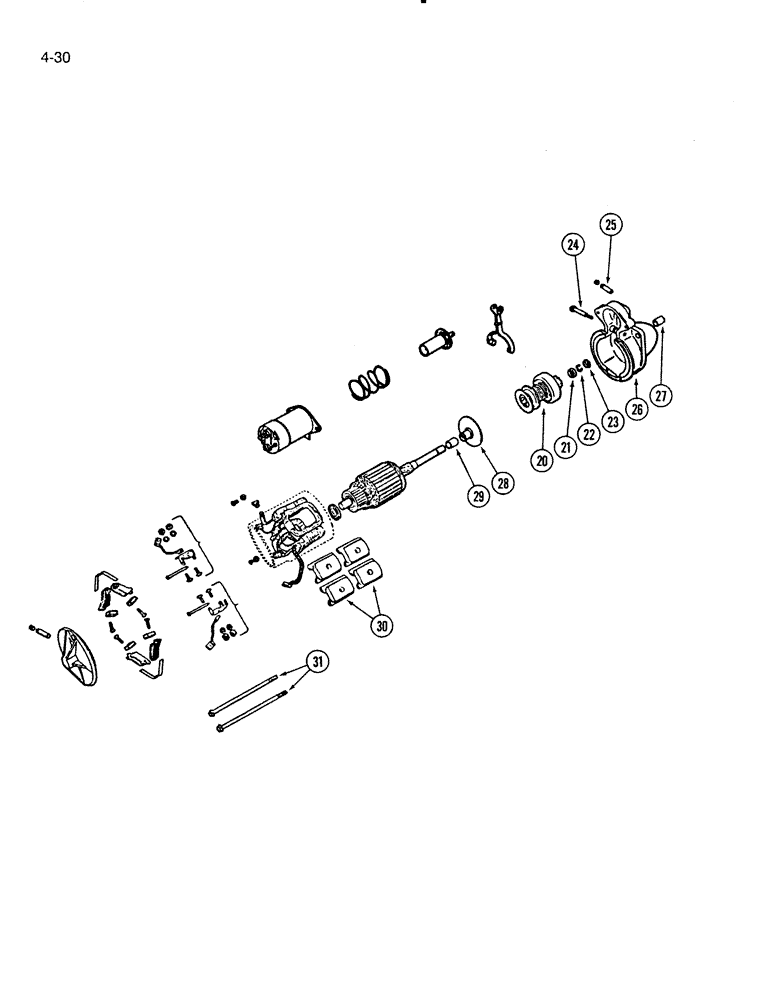

Схема запчастей Case IH 5000 - (4-30) - STARTER ASSEMBLY, D-239 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1107866

MOTOR

ASEMBLY - starting (order 1998342)

1шт.

20

A47178

DRIVE

- motor

1шт.

21

R15049

COLLAR

- drive end , pinion stop

1шт.

22

1928022

SNAP RING

RING - retainer

1шт.

23

A25385

WASHER

COLLAR - drive end thrust

1шт.

24

1932197

SCREW

STUD - shift lever

1шт.

9421424

LOCK WASHER

- lock

1шт.

9635082

NUT,5/16" - 18, Gr 5

- shift lever stud

1шт.

9428056

NUT - lock

1шт.

1428056

NUT - lock (Used with sealing washer 1970988)

1шт.

1970988

WASHER

- sealing

1шт.

25

1916439

WICK

- drive end

1шт.

26

1986826

HOUSING

- drive end

1шт.

27

A25387

BEARING

BUSHING - drive end

1шт.

809593

PIN

- dowel

1шт.

28

820149

PLATE

BEARING - center plate

1шт.

1914580

SCREW

- center bearing attaching

2шт.

1962276

WASHER

- lock

2шт.

29

A42125

BUSHING

- center bearing 1/2 inch

1шт.

29

R15038

BUSHING

- center bearing 23/32 inch

1шт.

30

1887021

SHOE - pole

4шт.

1913960

SCREW

- pole shoe attaching

4шт.

1960908

BOLT (SPREADER)

BOLT - motor through

2шт.

225-14108

NUT,#8-32

- hex, No. 8 NC

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

Выбрано товаров: 29
