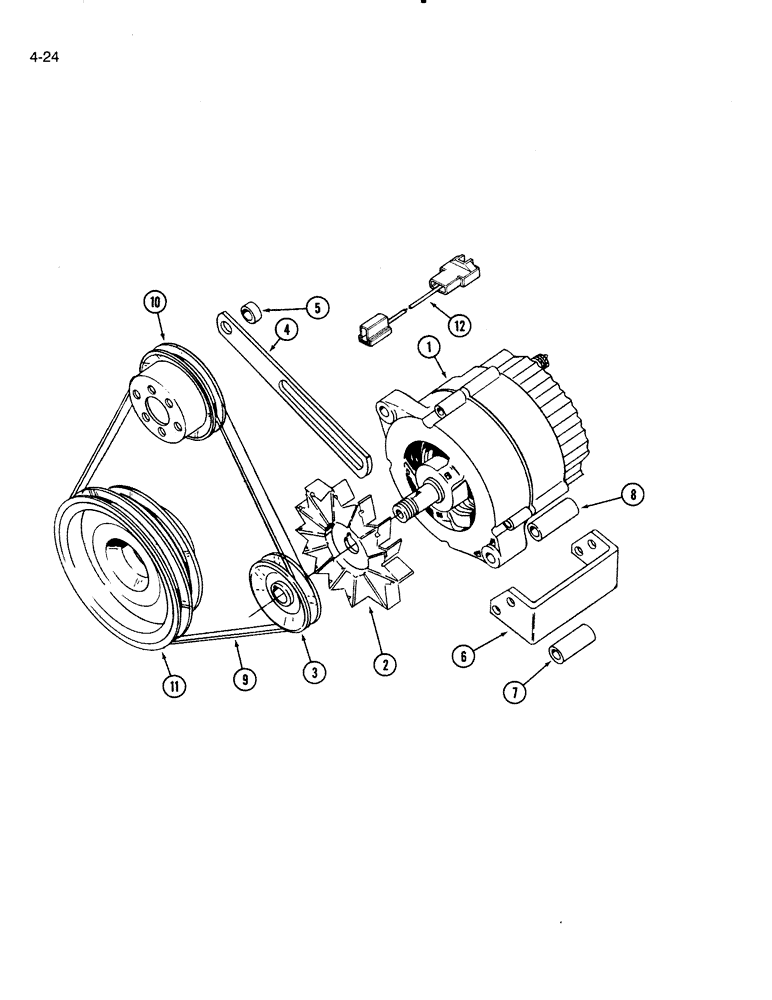

Запчасти Case IH 5000 (4-24) - ALTERNATOR MOUNTING, 5000 WINDROWER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical (See Pages 4-35 through 4-41)

1шт.

571690C1

NUT - hex, m6 x 1 mm

1шт.

225-14112

NUT,#12-24

1шт.

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

1шт.

2

221425R1

FAN

- alternator

1шт.

3

378349R1

PULLEY

- alternator

1шт.

4

831674C1

BAR

BRACE - alternator ajusting

1шт.

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 30 mm

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

5

86224H

SPACER,1/4" Pipe x 3/8"

1шт.

6

596491R1

CHANNEL

- alternator support

1шт.

7

601637R1

SPACER,3/8" Pipe x 1 15/16"

- channel mounting

1шт.

8

512256R1

SPACER

- alternator pivot

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

9

280210C2

BELT,53.50" L

V-BELT , Fan 53.50" L

1шт.

10

3055178R1

PULLEY

- fan

1шт.

11

3138835R1

PULLEY

- crankshaft

1шт.

12

1995794C1

HARNESS

- alternator adapter

1шт.
